CK45-xxxx - Mid High Voltage Ceramic Capacitors

Download the CK45-xxxx datasheet PDF. This datasheet also covers the CK45 variant, as both devices belong to the same mid high voltage ceramic capacitors family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CK45_TDK.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number CK45-xxxx
Manufacturer TDK
File Size 61.35 KB
Description Mid High Voltage Ceramic Capacitors
Datasheet download datasheet CK45-xxxx Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CK431K Adjustable Accurate Reference Source JCET

Other Datasheets by TDK

Part Number Description
CK45 Mid High Voltage Ceramic Capacitors

Full PDF Text Transcription

Click to expand full text

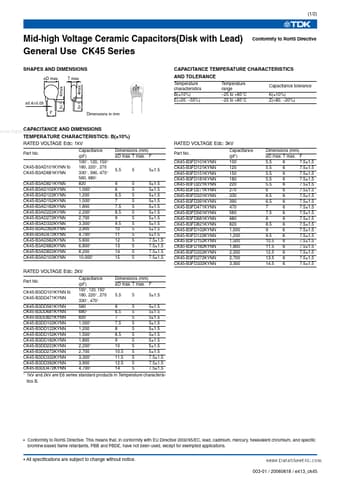

(1/2) Mid-high Voltage Ceramic Capacitors(Disk with Lead) General Use CK45 Series SHAPES AND DIMENSIONS øD max. Conformity to RoHS Directive T max. 4max. 4max. CAPACITANCE TEMPERATURE CHARACTERISTICS AND TOLERANCE Temperature characteristics B(±10%) E(+20, –55%) Temperature range –25 to +85°C –25 to +85°C Capacitance tolerance K(±10%) Z(+80, –20%) 5 ±1 F 5 ±1 Dimensions in mm ø0.6 ± 0.05 CAPACITANCE AND DIMENSIONS www.DataSheet4U.com TEMPERATURE CHARACTERISTICS: B(±10%) RATED VOLTAGE Edc: 1kV Part No.
