VLS6045EX-1R0N-H - Inductors

Features

  • Magnetic shield type wound inductor for power circuits. High magnetic shield construction achieved by a ferrite magnetic material and compatible with high-density mounting. Larger current and lower Rdc were achieved by optimizing the ferrite core figure. Compliant with AEC-Q200.

📥 Download Datasheet

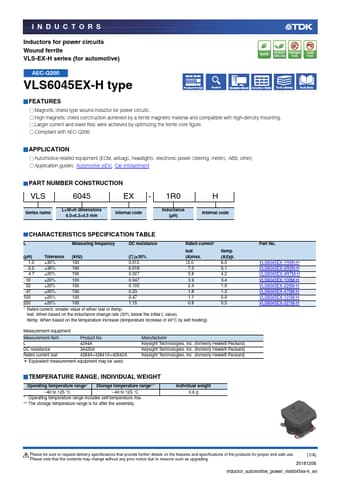

Datasheet preview – VLS6045EX-1R0N-H

Datasheet Details

Part number VLS6045EX-1R0N-H
Manufacturer TDK
File Size 241.01 KB
Description Inductors
Datasheet download datasheet VLS6045EX-1R0N-H Datasheet
Additional preview pages of the VLS6045EX-1R0N-H datasheet.

📁 Similar Datasheet

  • VLSL30 - High Brightness LED Power Module (Vishay)
  • VLSL3012A2 - High Brightness LED Power Module (Vishay)
  • VLSL3024A2 - High Brightness LED Power Module (Vishay)
  • VLSL31 - High Brightness LED Power Module (Vishay)
  • VLSL3112A2 - High Brightness LED Power Module (Vishay)
  • VLSL3124A2 - High Brightness LED Power Module (Vishay)
  • VLSL3212A2 - High Brightness LED Power Module (Vishay)
  • VLSL3224A2 - High Brightness LED Power Module (Vishay)
  • VLSL4012A - High Brightness LED Power Module (Vishay)
  • VLSL4024A - High Brightness LED Power Module (Vishay)
Other Datasheets by TDK

Full PDF Text Transcription

Click to expand full text
INDUCTORS Inductors for power circuits Wound ferrite VLS-EX-H series (for automotive) RoHS Cl Br REACH Halogen SVHC-Free Free Pb Lead Free AEC-Q200 VLS6045EX-H type FEATURES Magnetic shield type wound inductor for power circuits. High magnetic shield construction achieved by a ferrite magnetic material and compatible with high-density mounting. Larger current and lower Rdc were achieved by optimizing the ferrite core figure. Compliant with AEC-Q200 APPLICATION Automotive-related equipment (ECM, airbags, headlights, electronic power steering, meters, ABS, other) Application guides: Automotive (xEV), Car Infotainment PART NUMBER CONSTRUCTION VLS 6045 EX - Series name L×W×H dimensions 6.0×6.3×4.
