MAP101 datasheet by TE Connectivity.
| Part number | MAP101 |
|---|---|
| Datasheet | MAP101-Tyco.pdf |
| File Size | 316.09 KB |
| Manufacturer | TE Connectivity |
| Description | High Voltage DC Contactors |
|
|

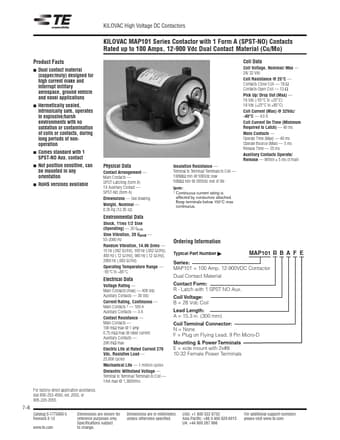

contact Not position sensitive, can be mounted in any orientation RoHS versions available Physical Data Contact Arrangement Main Contacts SPST-Latching (form X) 1X Auxiliary Contact SPST-NO (form A) Dimensions See drawing Weight, Nominal 0.35 Kg (12.35 oz) Insulation Resistance Terminal to Terminal/ Terminals to Coil 100MΩ min @ 500Vdc new 50MΩ min @ 500Vdc end of life Note: 1 Continuous current rating is affected...
