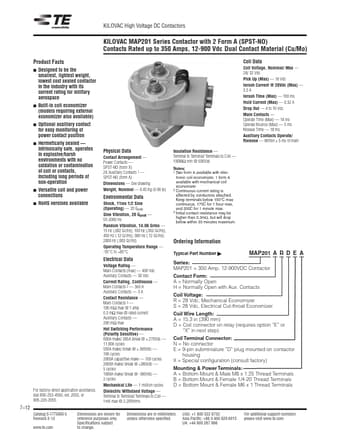

MAP201
KILOVAC High Voltage DC Contactors
KILOVAC MAP201 Series Contactor with 2 Form A (SPST-NO) Contacts Rated up to 350 Amps, 12-900 Vdc Dual Contact Material (Cu/Mo)
Product Facts n
Coil Data
Coil Voltage, Nominal/ Max
- 28/ 32 Vdc Pick Up (Max)
- 16 Vdc Inrush Current @ 28Vdc (Max)
- 3.5 A Inrush Time (Max)
- 100 ms Hold Current (Max)
- 0.32 A Drop Out
- 4 to 10 Vdc Main Contacts
- Operate Time (Max)
- 18 ms Operate Bounce (Max)
- 5 ms Release Time
- 18 ms Auxiliary Contacts Operate/ Release
- Within ± 5 ms of main
Designed to be the smallest, lightest weight, lowest cost sealed contactor in the industry with its current rating for military aerospace Built-in coil economizer (models requiring external economizer also available) Optional auxiliary contact for easy monitoring of power contact position Hermetically sealed
- intrinsically safe, operates in explosive/harsh environments with no oxidation or contamination of coil or contacts, including long periods of non-operation...
