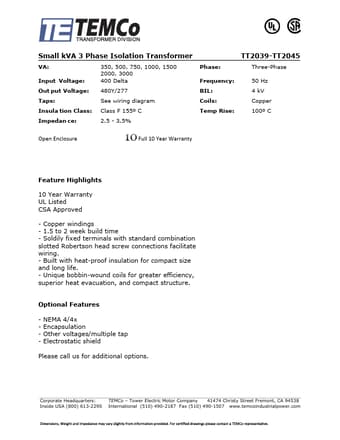

Small kVA 3 Phase Isolation Transformer
VA: Input Voltage:
350, 500, 750, 1000, 1500 2000, 3000 400 Delta
Out put Voltage: 480Y/277
Taps:
See wiring diagram
Insula tion Class: Class F 155º C
Impedan ce:
2.5 - 3.5%
Phase:
Frequency: BIL: Coils: Temp Rise:
TT2039-TT2045
Three-Phase
50 Hz 4 kV Copper 100º C
Open Enclosure
Full 10 Year Warranty
Feature Highlights 10 Year Warranty UL Listed CSA Approved - Copper windings - 1.5 to 2 week build time - Soldily fixed terminals with standard combination slotted Robertson head screw connections facilitate wiring. - Built with heat-proof insulation for compact size and long life. - Unique bobbin-wound coils for greater efficiency, superior heat evacuation, and compact structure.
TT2044 Datasheet
