THCV214 - LVDS SerDes transmitter and receiver

Download the THCV214 datasheet PDF (THCV213 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for lvds serdes transmitter and receiver.

Description

THCV213 and THCV214 are designed to support pixel data transmission between the Host and Display.

The chipset can transmit 18bit data and 4bit control data through only a single differential cable at a pixel clock frequency from 5MHz to 40MHz.

Features

  • Transmit 18bit data and 4bit control data via a single differential cable.
  • Wide frequency range: 5MHz to 40MHz.
  • Support SYNC pattern and LOCK indicator.
  • Pre Emphasis mode.
  • Clock edge selectable.
  • Dual Display mode.
  • Power Down mode.
  • Low power single 3.3V CMOS design.
  • 48pin TQFP.
  • AEC-Q100 ESD Protection.
  • EU RoHS Compliant Block Diagram Input Buffer Serializer Deserializer Output Buffer Copyright©2015 THine Electronics, Inc. 1/19 THine Ele.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (THCV213-THineElectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number THCV214
Manufacturer THine Electronics
File Size 810.17 KB
Description LVDS SerDes transmitter and receiver
Datasheet download datasheet THCV214 Datasheet

📁 Similar Datasheet

  • THC1420 - NPN Transistors (Allegro Microsystems)
  • THC1566 - NPN Transistors (Allegro Microsystems)
  • THC1613 - NPN Transistors (Allegro Microsystems)
  • THC1711 - NPN Transistors (Allegro Microsystems)
  • THC2017 - NPN Transistors (Allegro Microsystems)
  • THC2102 - NPN Transistors (Allegro Microsystems)
  • THC2192 - (THCxxx) NPN Transistors (Allegro Microsystems)
  • THC2195 - NPN Transistors (Allegro Microsystems)
  • THC2218 - NPN Transistors (Allegro Microsystems)
  • THC2219 - NPN Transistors (Allegro Microsystems)
Other Datasheets by THine Electronics
  • THCV213 - LVDS SerDes transmitter and receiver
  • THCV215 - HS High-speed Video Data Transmitter and Receiver
  • THCV216 - HS High-speed Video Data Transmitter and Receiver
  • THCV217 - HS High-speed Video Data Transmitter and Receiver
  • THCV218 - HS High-speed video data receiver
  • THCV219 - HS High-speed video data transmitter
  • THCV220 - HS High-speed video data receiver
  • THCV226 - HS High-speed Video Data Receiver

Full PDF Text Transcription

Click to expand full text

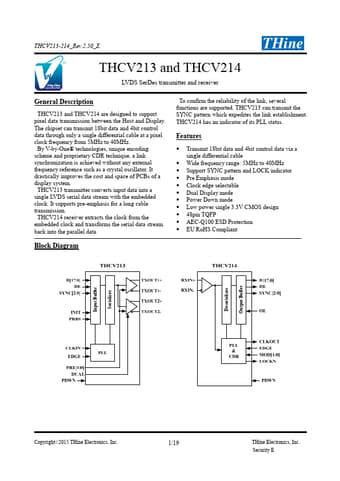

THCV213-214_Rev.2.50_E THCV213 and THCV214 LVDS SerDes transmitter and receiver General Description THCV213 and THCV214 are designed to support pixel data transmission between the Host and Display. The chipset can transmit 18bit data and 4bit control data through only a single differential cable at a pixel clock frequency from 5MHz to 40MHz. By V-by-One® technologies, unique encoding scheme and proprietary CDR technique, a link synchronization is achieved without any external frequency reference such as a crystal oscillator. It drastically improves the cost and space of PCBs of a display system. THCV213 transmitter converts input data into a single LVDS serial data stream with the embedded clock. It supports pre-emphasis for a long cable transmission.
