MDT2016-CF - Multilayer Power Inductors

Features

  • Miniature size: 2016 footprint (2.0mm×1.6mm) and low profile(1.0mm Max. Height).
  • Magnetically shielded.
  • Ideal for a variety of DC-DC converter Inductor.

📥 Download Datasheet

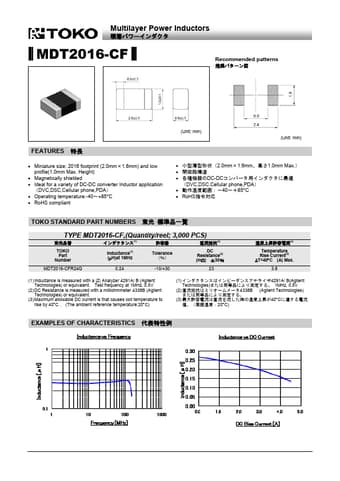

Datasheet preview – MDT2016-CF

Datasheet Details

Part number MDT2016-CF
Manufacturer TOKO
File Size 169.14 KB
Description Multilayer Power Inductors
Datasheet download datasheet MDT2016-CF Datasheet
Additional preview pages of the MDT2016-CF datasheet.

📁 Similar Datasheet

  • MDT2010 - 8-bit Microcontroller (Micon Design Technology)
  • MDT2005 - 8-bit Microcontroller (Micon Design Technology)
  • MDT2020 - EPROM-Based 8-bit micro-controller (Micon Design Technology)
  • MDT2020B - OTP Microcontroller (ZLG MCU Development)
  • MDT2020B - EPROM-Based 8-bit micro-controller (Micon Design Technology)
  • MDT2030 - Microcontroller (Micon Design Technology)
  • MDT2051 - Microcontroller (Micon Design Technology)
  • MDT2060 - Microcontroller (Micon Design Technology)
  • MDT20N109PTRH - N-channel MOSFET (MagnaChip)
  • MDT-160 - PHASE CONTROL THYRISTOR (ELECTROVIPRYAMITEL)
Other Datasheets by TOKO

Full PDF Text Transcription

Click to expand full text
Multilayer Power Inductors MDT2016-CF Recommended patterns FEATURES  Miniature size: 2016 footprint (2.0mm×1.6mm) and low profile(1.0mm Max. Height)  Magnetically shielded  Ideal for a variety of DC-DC converter Inductor application （DVC,DSC,Cellular phone,PDA）  Operating temperature:-40～+85°C  RoHS compliant (Unit: mm) (Unit: mm)  （2.0mm×1.6mm、1.0mm Max.）   DC-DC （DVC,DSC,Cellular phone,PDA）  ：－40～＋85°C  RoHS TOKO STANDARD PART NUMBERS TYPE MDT2016-CF,(Quantity/reel; 3,000 PCS) (1) (2) TOKO Part Number Inductance(1) (H)at 1MHz Tolerance （％） DC Resistance(2) (m) ±30％ MDT2016-CFR24Q 0.24 -10/+30 23 (3) Temperature Rise Current(3) T=40C (A) Max. 3.8 (1) Inductance is measured with a |Z| Analyzer 4291A/ B (Agilent Technologies) or equivalent.
