TK11129M, TK11120M Datasheet - TOKO

TK11129M, TK11120M, VOLTAGE REGULATOR

The TK111xxM is a low dropout linear regulator with a builtin electronic switch. The internal switch can be controlled by TTL or CMOS logic levels. The device is in the “on” state when the control pin is pulled to a logic high level. An external capacitor can be connected to the noise bypass pin to .

TK11120M-TOKO.pdf

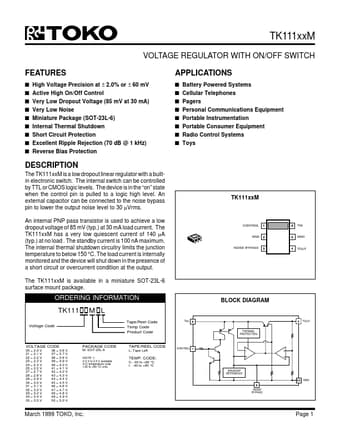

TK11129M Datasheet Preview — This datasheet PDF includes multiple part numbers: TK11129M, TK11120M. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TK11129M, TK11120M

Manufacturer:

TOKO

File Size:

84.99 KB

Description:

VOLTAGE REGULATOR

Note:

This datasheet PDF includes multiple part numbers: TK11129M, TK11120M.
Please refer to the document for exact specifications by model.

TK11129M Features

* s High Voltage Precision at ± 2.0% or ± 60 mV s Active High On/Off Control s Very Low Dropout Voltage (85 mV at 30 mA) s Very Low Noise s Miniature Package (SOT-23L-6) s Internal Thermal Shutdown s Short Circuit Protection s Excellent Ripple Rejection (70 dB @ 1 kHz) s Reverse Bias Protection DESCRI
