SBT605 - Single Phase 6.0 AMPS. Silicon Bridge Rectifiers

Download the SBT605 datasheet PDF (SBT601 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for single phase 6.0 amps. silicon bridge rectifiers.

Features

  • a UL Recognized File # E-96005 a Surge overload rating 200 amperes peak a Low forward voltage drop a High temperature soldering guaranteed: 250+ / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs. , ( 2.3 kg ) tension a Small size, simple installation a Leads solderable per MIL-STD-202 Method 208 Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics Rating at 25+ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or induc.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SBT601-TaiwanSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Other Datasheets by Taiwan Semiconductor
  • SBT605G - Glass Passivated Bridge Rectifiers
  • SBT601 - Single Phase 6.0 AMPS. Silicon Bridge Rectifiers
  • SBT601G - Glass Passivated Bridge Rectifiers
  • SBT602 - Single Phase 6.0 AMPS. Silicon Bridge Rectifiers
  • SBT602G - Glass Passivated Bridge Rectifiers
  • SBT603 - Single Phase 6.0 AMPS. Silicon Bridge Rectifiers
  • SBT603G - Glass Passivated Bridge Rectifiers
  • SBT604 - Single Phase 6.0 AMPS. Silicon Bridge Rectifiers

Full PDF Text Transcription

Click to expand full text

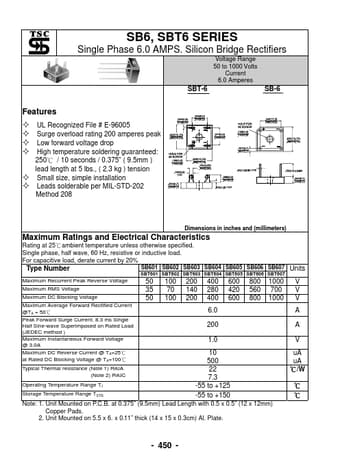

SB6, SBT6 SERIES Single Phase 6.0 AMPS. Silicon Bridge Rectifiers Voltage Range 50 to 1000 Volts Current 6.0 Amperes SBT-6 SB-6 Features a UL Recognized File # E-96005 a Surge overload rating 200 amperes peak a Low forward voltage drop a High temperature soldering guaranteed: 250+ / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs., ( 2.3 kg ) tension a Small size, simple installation a Leads solderable per MIL-STD-202 Method 208 Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics Rating at 25+ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load.
