SD101BW - 400mW Schottky Barrier Switching Diode

This page provides the datasheet information for the SD101BW, a member of the SD101AW 400mW Schottky Barrier Switching Diode family.

Features

  • — Low forward voltage drop — Guard ring construction for transient protection — Negligible reverse recovery time Mechanical Data — Case: SOD-123, plastic — Polarity: Cathode band — Terminals: Solderable per MIIL-STD-202, Method 208 — Marking: Date Code and Type Code or Date Code only Type Code: SD101AW S1 SD101BW S2 SD101CW S3 — Weight: 0.01 grams (approx. ) Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics Rating at 25oC ambient temperature unless otherw.

📥 Download Datasheet

Datasheet preview – SD101BW

Datasheet Details

Part number SD101BW
Manufacturer Taiwan Semiconductor
File Size 63.94 KB
Description 400mW Schottky Barrier Switching Diode
Datasheet download datasheet SD101BW Datasheet
Additional preview pages of the SD101BW datasheet.

📁 Similar Datasheet

  • SD101BW - Two Terminals Schottky Barrier Diodes (TAITRON)
  • SD101BW - SCHOTTKY BARRIER SWITCHING DIODE (Diodes)
  • SD101BW - (SD101AW - SD101CW) Schottky Diodes (General Semiconductor)
  • SD101BW - Small Signal Schottky Diodes (MCC)
  • SD101BW - Small Signal Schottky Diodes (Vishay)
  • SD101BW - Schottky Barrier Diode (GME)
  • SD101BW - Plastic-Encapsulate Schottky Diodes (SeCoS)
  • SD101BW - SURFACE MOUNT SCHOTTKY BARRIER DIODE (Won-Top Electronics)
  • SD101BW - SMD Schottky Barrier Diodes (Diotec)
  • SD101BW - SCHOTTKY DIODES (WEJ)
Other Datasheets by Taiwan Semiconductor
  • SD101AW - 400mW Schottky Barrier Switching Diode
  • SD101CW - 400mW Schottky Barrier Switching Diode
  • SD1002 - 1.0A Surface Mount Schottky Barrier Rectifier
  • SD1003 - 1.0A Surface Mount Schottky Barrier Rectifier
  • SD1004 - 1.0A Surface Mount Schottky Barrier Rectifier
  • SD1006 - 1.0A Surface Mount Schottky Barrier Rectifier
  • SD103AW - SMD Schottky Barrier Diode
  • SD103BW - SMD Schottky Barrier Diode

Full PDF Text Transcription

Click to expand full text

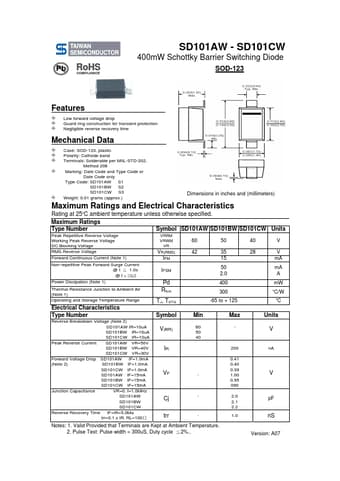

Pb RoHS COMPLIANCE SD101AW - SD101CW 400mW Schottky Barrier Switching Diode SOD-123 Features — Low forward voltage drop — Guard ring construction for transient protection — Negligible reverse recovery time Mechanical Data — Case: SOD-123, plastic — Polarity: Cathode band — Terminals: Solderable per MIIL-STD-202, Method 208 — Marking: Date Code and Type Code or Date Code only Type Code: SD101AW S1 SD101BW S2 SD101CW S3 — Weight: 0.01 grams (approx.) Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics Rating at 25oC ambient temperature unless otherwise specified.
