SR804, SR802, Schottky Barrier Rectifier

Green compound AEC-Q101 qualified RATINGS AND CHARACTERISTICS CURVES (TA=25℃ unless otherwise noted) AVERAGE FORWARD CURRENT (A) FIG.1- MAXIMUM FORWARD CURRENT DERATING CURVE 10 SR805 - SR820 8 6 SR802 - SR804 4 RESISTIVE OF 2 INDUCTIVE LOAD WITH HEATSINK 0 0 50 100 LEAD TEMPERATURE (oC) 150 P.

SR802-TaiwanSemiconductor.pdf

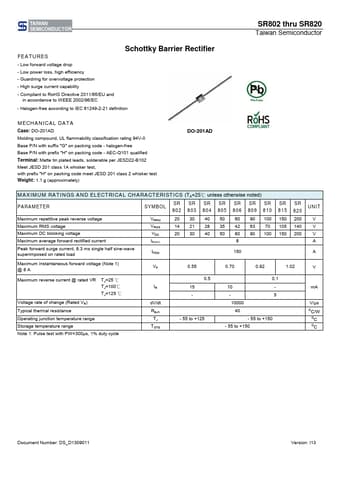

SR804 Datasheet Preview — This datasheet PDF includes multiple part numbers: SR804, SR802. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SR804, SR802

Manufacturer:

Taiwan Semiconductor

File Size:

195.84 KB

Description:

Schottky Barrier Rectifier

Note:

This datasheet PDF includes multiple part numbers: SR804, SR802.
Please refer to the document for exact specifications by model.

SR804 Features

* - Low forward voltage drop - Low power loss, high efficiency - Guardring for overvoltage protection - High surge current capability - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition SR802 thru SR820 Taiwan Semiconduct
