TS358 Single Supply Dual Operational Amplifiers

TS358 Description

TS358 Single Supply Dual Operational Amplifiers SOP-8 DIP-8 Pin assignment: 1.Output A 8.Vcc 2.Input A (-) 7.Output B 3.Input A (+) 6.Inp.
Utilizing the circuit designs perfected for recently introduced Quad Operational Amplifiers, these dual operational amplifiers have several distinct a.

TS358 Features

* Short circuit protected outputs
* True differential input stage
* Single supply operation: 3V to 32V
* Low input bias currents
* Internally compensated
* Common mode range extends to negative supply
* Single and split supply operation
* Similar performance to the po

TS358 Applications

* They can operate at supply voltages as low as 3.0 Volts or as high as 32 Volts with quiescent currents about one fifth of those associated with the LM741 (on a pet amplifier basis). The common mode input range includes the negative supply, thereby eliminating the necessity for external biasing comp

📥 Download Datasheet

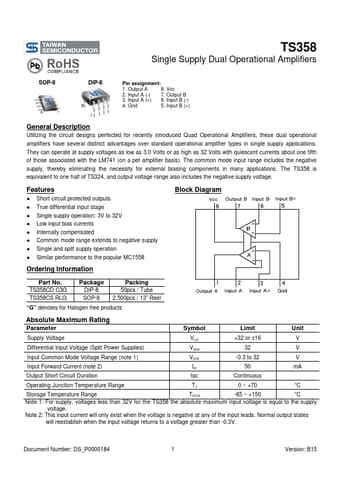

Preview of TS358 PDF
