TSC4505CXRF - High Voltage NPN Transistor

Download the TSC4505CXRF datasheet PDF (TSC4505 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for high voltage npn transistor.

Description

only.

No license, express or implied, to any intellectual property rights is granted by this document.

Features

  • Low VCE(SAT) 0.15V @ IC / IB = 10mA / 10mA (Typ. ) Complementary part with TSA1759 Ordering Information Part No. TSC4505CX RF TSC4505CT B0 TSC4505CT A3 Package SOT-23 TO-92 TO-92 Packing 3Kpcs / 7” Reel 1Kpcs / Bulk 2Kpcs / Ammo Structure.
  • Epitaxial Planar Type NPN Silicon Transistor Absolute Maximum Rating (Ta = 25oC unless otherwise noted) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Ope.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TSC4505_TaiwanSemiconductorCompany.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number TSC4505CXRF
Manufacturer Taiwan Semiconductor Company
File Size 280.75 KB
Description High Voltage NPN Transistor
Datasheet download datasheet TSC4505CXRF Datasheet

📁 Similar Datasheet

  • TSC426 - (TSC426 - TSC428) Dual Power MOSFET Drivers (Maxim Integrated Products)
  • TSC427 - (TSC426 - TSC428) Dual Power MOSFET Drivers (Maxim Integrated Products)
  • TSC428 - (TSC426 - TSC428) Dual Power MOSFET Drivers (Maxim Integrated Products)
  • TSC-54-RU - Analog Resistive Touch Screen Controller (DMC)
  • TSC10 - High Voltage NPN Transistor (Taiwan Semiconductor)
  • TSC101 - High Side Current Sense Amplifier (ST Microelectronics)
  • TSC102 - High-side current sense amplifier plus signal conditioning amplifier (ST Microelectronics)
  • TSC1021 - High-side current sense amplifier (STMicroelectronics)
  • TSC103 - high-side current sense amplifier (STMicroelectronics)
  • TSC1031 - high-side current sense amplifier (STMicroelectronics)
Other Datasheets by Taiwan Semiconductor Company
  • TSC4505CTBO - High Voltage NPN Transistor
  • TSC4505 - High Voltage NPN Transistor
  • TSC4505A3 - High Voltage NPN Transistor
  • TSC136 - High Voltage NPN Transistor
  • TSC2059 - General Purpose NPN Transistor
  • TSC2411 - General Purpose NPN Transistor
  • TSC2411D - General Purpose Dual NPN Transistor
  • TSC2412 - General Purpose NPN Transistor

Full PDF Text Transcription

Click to expand full text

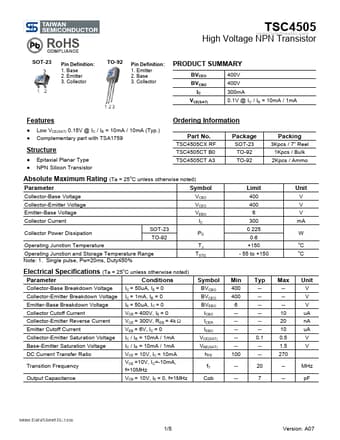

High Voltage NPN Transistor SOT-23 Pin Definition: 1. Base 2. Emitter 3. Collector www.DataSheet4U.com TSC4505 TO-92 Pin Definition: 1. Emitter 2. Base 3. Collector PRODUCT SUMMARY BVCEO BVCBO IC VCE(SAT) 400V 400V 300mA 0.1V @ IC / IB = 10mA / 1mA Features ● ● Low VCE(SAT) 0.15V @ IC / IB = 10mA / 10mA (Typ.) Complementary part with TSA1759 Ordering Information Part No.
Published: |
