S48D50, S48R50 AC/DC Controller

S48D50 Description

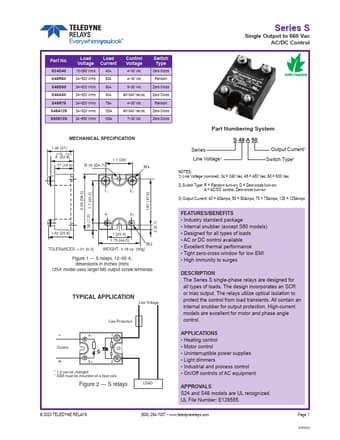

Series S Single Output to 660 Vac AC/DC Control Part No.S24D40 S48R50 S48D50 S48A50 S48R75 S48A125 S60D125 Load Voltage 12 *280 Vrms Load C.
The Series S single-phase relays are designed for all types of loads.

S48D50 Features

* BENEFITS
* Industry standard package
* Internal snubber (except S60 models)
* Designed for all types of loads
* AC or DC control available
* Excellent thermal performance
* Tight zero-cross window for low EMI
* High immunity to surges DESCRIPTI

S48D50 Applications

* Heating control
* Motor control
* Uninterruptible power supplies
* Light dimmers
* Industrial and process control
* On/Off controls of AC equipment APPROVALS S24 and S48 models are UL recognized. UL File Number: E128555. © 2023 TELEDYNE RELAYS (800

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: S48D50, S48R50. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S48D50, S48R50
Manufacturer
Teledyne
File Size
564.69 KB
Datasheet
S48R50-Teledyne.pdf
Description
AC/DC Controller
Note
This datasheet PDF includes multiple part numbers: S48D50, S48R50.
Please refer to the document for exact specifications by model.
