MBR20150CA, MBR2035CA 20.0 Ampere Dual Common Anode Schottky Barrier Rectifiers

MBR20150CA Description

MBR2035CA thru MBR20200CA ® MBR2035CA thru MBR20200CA Pb Pb Free Plating Product 20.0 Ampere Dual Common Anode Schottky Barrier Rectifiers Featu.

MBR20150CA Features

* Plastic material used carries Underwriters Laboratory Classifications 94V-0 Metal silicon junction, majority carrier conduction Low power loss, high efficiency High current capability, low forward voltage drop High surge capability For use in low voltage, high frequency inverters, free wheeling, and

MBR20150CA Applications

* Guardring for overvoltage protection High temperature soldering guaranteed: 260oC/10 seconds,0.25”(6.35mm)from case TO-220AB .419(10.66) .387(9.85) .139(3.55) MIN .038(0.96) .019(0.50) .269(6.85) .226(5.75) .624(15.87) .548(13.93) Unit : inch (mm) .196(5.00) .163(4.16) .054(1.39) .045(1.15) .025(

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR20150CA, MBR2035CA. Please refer to the document for exact specifications by model.

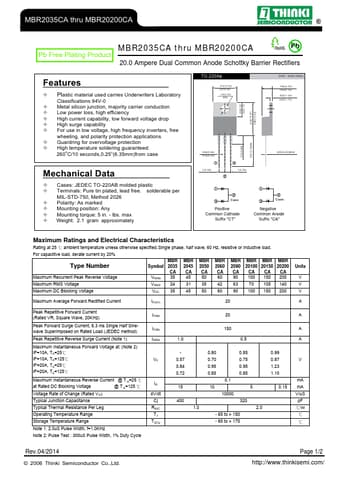

datasheet Preview Page 2

Datasheet Details

Part number
MBR20150CA, MBR2035CA
Manufacturer
Thinki Semiconductor
File Size
616.29 KB
Datasheet
MBR2035CA-ThinkiSemiconductor.pdf
Description
20.0 Ampere Dual Common Anode Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: MBR20150CA, MBR2035CA.
Please refer to the document for exact specifications by model.
