TM084SDHG02-01 800xRGBx600 TFT-LCD Module

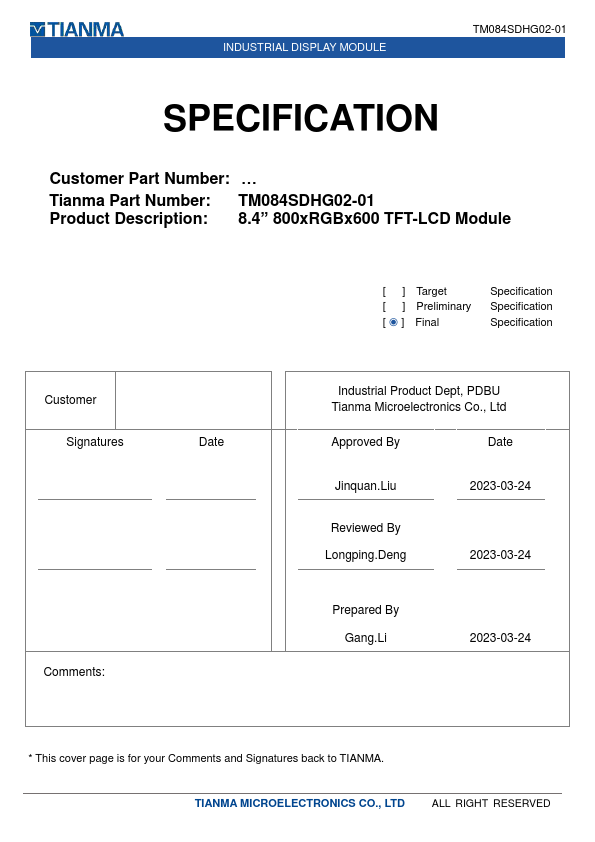

8.4” 800xRGBx600 TFT-LCD Module [ ] Target [ ] Preliminary [ ◉ ] Final Specification Specification Specification Customer Signatures Date Comments: Industrial Product Dept, PDBU Tianma Microelectronics Co., Ltd Approved By Date Jinquan.Liu 2023-03-24 Reviewed By Longping.Deng 2023-03-24.

TM084SDHG02-01 Features

* DC-DC power circuit is embedded

* Without LED driver

* 30Khrs LED life time

* 24bit RGB interface

* FPC pin out

* Anti- glare surface treatment

* Compliant with the European RoHS Directive (2011/65/EU) and Delegated Directive (2015/863/EU, Am

TM084SDHG02-01-Tianma.pdf

TM084SDHG02-01 Datasheet Preview — Preview of TM084SDHG02-01 PDF

Datasheet Details

Part number:

TM084SDHG02-01

Manufacturer:

Tianma

File Size:

584.23 KB

Description:

800xrgbx600 tft-lcd module.
