2SK420 Silicon N-Channel MOSFET

2SK420 Description

: i SILICON N CHANNEL MPS TYPE (7T-MOS) HIGH SPEED, HIGH VOLTAGE SWITCHING APPLICATIONS.SWITCHING REGULATOR, DC-DC CONVERTER AND MOTOR DRIVE APPL.

2SK420 Features

* . High Breakdown Voltage : V(br)dss= 400V . High Forward Transfer Admittance : lYf s l=2.5S (Typ. ) . Low Leakage Current : LGSS=i100nA(Max. ) @ Vgs=±20V . Enhancement -Mode IDS S= 1mA (Max. ) @ VdS=400V : Vth= l- 5~ 3. 5V @ lD=lmA MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC Drain-Source Voltage G

📥 Download Datasheet

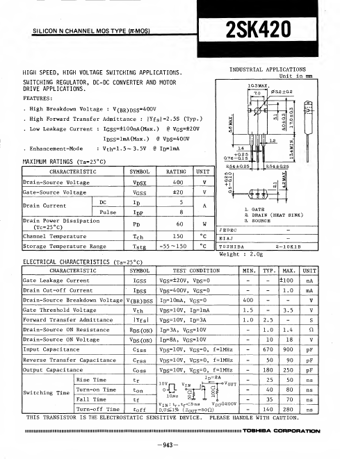

Preview of 2SK420 PDF
