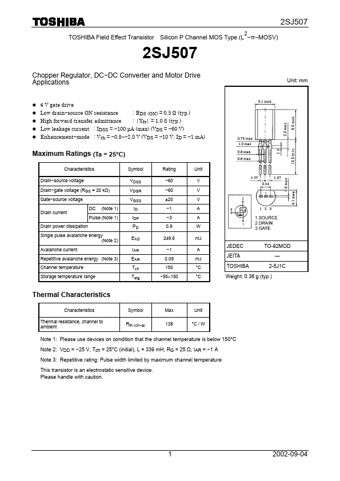

2SJ507 TOSHIBA Field Effect Transistor Silicon P Channel MOS Type (L2−π−MOSV) 2SJ507 Chopper Regulator, DC−DC Converter and Motor Drive Applications Unit: mm l 4 V gate drive l Low drain−source ON resistance : RDS (ON) = 0.5 Ω (typ.) l High forward transfer admittance : |Yfs| = 1.0 S (typ.) l Low leakage current : IDSS = −100 µA (max) (VDS = −60 V) l Enhancement−mode : Vth = −0.8~−2.
