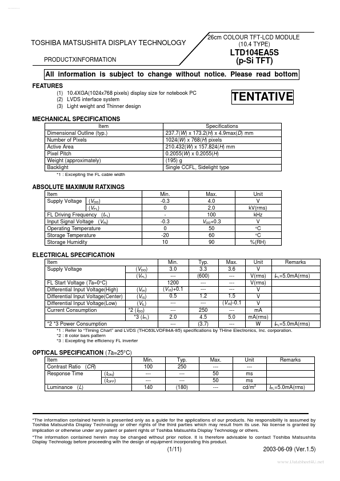

LTD104EA5S Datasheet | Toshiba

FEATURES (1) 10.4XGA(1024x768 pixels) display size for notebook PC (2) LVDS interface system (3) Light weight and Thinner design TENTATIVE MECHANICAL SPECIFICATIONS Item Dimensional Outline (typ.) Number of Pixels Active Area Pixel Pitch Weight (approximately) Backlight - 1 : Excepting the FL cable width Specifications 237.7(W) x 173.2(H) x 4.9max(D) mm 1024(W) x 768(H) pixels 210.432(W) x 157.824(H) mm 0.2055(W) x 0.2055(H) (195) g Single CCFL, Sidelight type ABSOLUTE MAXIMUM RATXINGS Item Supply Voltage (VDD) (VFL) FL Driving Frequency (f FL) Input Signal Voltage (VIN) Operating Temperature Storage Temperature Storage Humidity Min. -0.3 0 -0.3 0 -20 10 Max. 4.0 2.0 100 VDD+0.3 50 60 90 Unit V k V(rms) k Hz V °C °C %(RH) ELECTRICAL SPECIFICATION Item Supply Voltage FL Start Voltage (Ta=0°C) Differential Input Voltage(High) Differential Input Voltage(Center) Differential Input Voltage(Low) Current Consumption - 2 - 3 Power Consumption (VDD) (VFL) (VIH) (VIS) (VIL) - 2 (IDD) - 3 (IFL) Min. 3.0 --1200 (VIS)+0.1 0.5 ----2.0 --Typ. 3.3 (600) ----1.2 --250 4.5 (3.7) Max. 3.6 ------1.5 (VIS)-0.1 --5.0 --Unit V V(rms) V(rms) V V V m A m A(rms) W Remarks IFL=5.0m A(rms) IFL=5.0m A(rms) - 1 : Refer to “Timing Chart” and LVDS (THC63LVDF84A-85) specifications by THine Electronics, Inc. corporation. - 2 : 8 color bars pattern - 3 : Excepting the efficiency FL inverter OPTICAL SPECIFICATION (Ta=25°C) Item Contrast Ratio (CR) Response Time Luminance (L) Min. 100 ----140 Typ. 250 ----(180) Max. --50 50 --Unit --ms ms cd/m2 Remarks (t ON) (t OFF) IFL=5.0m A(rms) - The information contained herein is presented only as a guide for the applications of our products. No responsibility is assumed by Toshiba Matsushita Display Technology or other rights of the third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Toshiba Matsushita Display Technology or others. - The information contained herein may be changed without...
