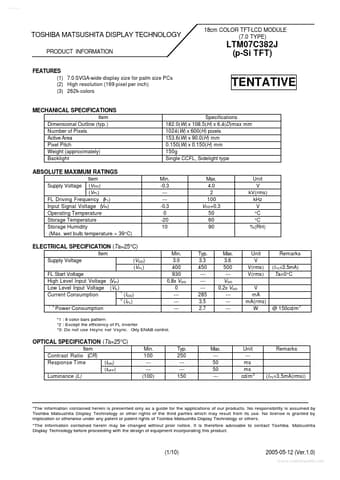

FEATURES (1) 7.0 SVGA-wide display size for palm size PCs (2) High resolution (169 pixel per inch) (3) 262k-colors TENTATIVE MECHANICAL SPECIFICATIONS Item Dimensional Outline (typ.) Number of Pixels Active Area Pixel Pitch Weight (approximately) Backlight Specifications 182.0(W) x 108.5(H) x 6.4(D)max mm 1024(W) x 600(H) pixels 153.6(W) x 90.0(H) mm 0.150(W) x 0.150(H) mm 150g Single CCFL, Sidelight type ABSOLUTE MAXIMUM RATINGS Item (VDD) (VFL) FL Driving Frequency ( f FL) Input Signal Voltage ( VIN) Operating Temperature Storage Temperature Storage Humidity (Max. wet bulb temperature = 39°C) Supply Voltage Min. -0.3 -----0.3 0 -20 10 Max. 4.0 2 100 VDD+0.3 50 60 90 Unit V k V(rms) k Hz V °C °C %(RH) ELECTRICAL SPECIFICATION (Ta=25°C) Item Supply Voltage (VDD) (VFL) Min. 3.0 400 930 0.8x VDD 0 ------Typ. 3.3 450 ------285 3.5 2.7 Max. 3.6 500 --VDD 0.2x VDD ------Unit V V(rms) V(rms) V m A m A(rms) W Remarks (I FL=3.5m A) Ta=0°C FL Start Voltage High Level Input Voltage ( VIH) Low Level Input Voltage (VIL) - 1 Current Consumption (I DD) - 2 (I FL) - 1 - 2 Power Consumption @ 150cd/m 2 - 1 : 8 color bars pattern - 2 : Except the efficiency of FL inverter - 3: Do not use Hsync nor Vsync. O nly ENAB control. OPTICAL SPECIFICATION (Ta=25°C) Item Contrast Ratio ( CR) Response Time Luminance (L) Min. 100 ----(100) Typ. 250 ----150 Max. --50 50 --Unit --ms ms cd/m 2 Remarks (t ON) (t OFF) (I FL=3.5m A(rms)) - The information contained herein is presented only as a guide for the applications of our products. No responsibility is assumed by Toshiba Matsushita Display Technology or other rights of the third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Toshiba Matsushita Display Technology or others. - The information contained herein may be changed without prior notice. It is therefore advisable to contact Toshiba Matsushita Display Technology before proceeding with the design of equipment...
