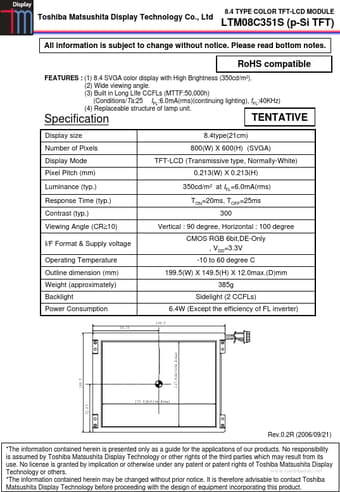

LTM08C351S
LTM08C351S is LCD manufactured by Toshiba.
FEATURES
: (1) 8.4 SVGA color display with High Brightness (350cd/m2). (2) Wide viewing angle. (3) Built in Long LIfe CCFLs (MTTF:50,000h) (Conditions/Ta:25- Ž IFL:6.0m A(rms)(continuing lighting), f FL:40KHz) (4) Replaceable structure of lamp unit.
Specification
Display size Number of Pixels Display Mode Pixel Pitch (mm) Luminance (typ.) Response Time (typ.) Contrast (typ.) Viewing Angle (CR≥10) I/F Format & Supply voltage Operating Temperature Outline dimension (mm) Weight (approximately) Backlight Power Consumption
199.5 99.75
TENTATIVE
8.4type(21cm) 800(W) X 600(H) (SVGA) TFT-LCD (Transmissive type, Normally-White) 0.213(W) X 0.213(H) 350cd/m2 at IFL=6.0m A(rms) TON=20ms, TOFF=25ms 300 Vertical : 90 degree, Horizontal : 100 degree CMOS RGB 6bit,DE-Only , VDD=3.3V -10 to 60 degree C 199.5(W) X 149.5(H) X 12.0max.(D)mm 385g Sidelight (2 CCFLs) 6.4W (Except the efficiency of FL inverter)
170.4(Active Area) 72.65
127.8(Active Area)
Rev.0.2R (2006/09/21)
- The information contained herein is presented only as a guide for the applications of our products. No responsibility is assumed by Toshiba Matsushita Display Technology or other rights of the third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Toshiba Matsushita Display ..net Technology or others.
- The information contained herein may be changed without prior notice. It is therefore advisable to contact Toshiba Matsushita Display Technology before proceeding with the design of equipment incorporating this...
