RN1130MFV - Silicon NPN Epitaxial Type Transistors

Toshiba

Datasheet Details

Part number	RN1130MFV
Manufacturer	Toshiba
File Size	146.19 KB
Description	Silicon NPN Epitaxial Type Transistors
Datasheet	RN1130MFV Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
RN1102	Isolated Resistor Termination Network	California Micro Devices Corp
RN1111	BUSSED RESISTOR NETWORK	California Micro Devices Corp
RN1120	Rectifier Diodes	ST Microelectronics
RN112BPC	Phone Jacks	ETC
RN1001	Silicon NPN Transistor	Toshiba Semiconductor

Other Datasheets by Toshiba

Part Number	Description
RN1131MFV	Silicon NPN Epitaxial Type Transistors
RN1132MFV	Silicon NPN Epitaxial Type Transistors
RN1101	Silicon NPN Epitaxial Type Transistors
RN1101MFV	Silicon NPN Transistor
RN1102	Silicon NPN Epitaxial Type Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

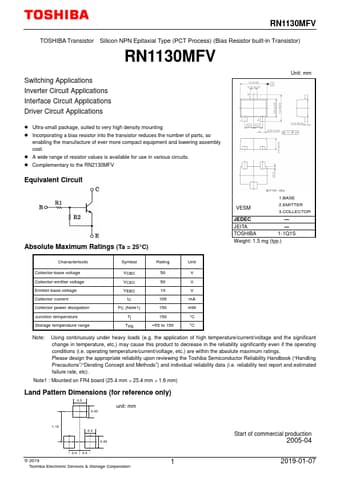

RN1130MFV TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process) (Bias Resistor built-in Transistor) RN1130MFV Switching Applications Inverter Circuit Applications Interface Circuit Applications Driver Circuit Applications Unit: mm  Ultra-small package, suited to very high density mounting  Incorporating a bias resistor into the transistor reduces the number of parts, so enabling the manufacture of ever more compact equipment and lowering assembly cost.  A wide range of resistor values is available for use in various circuits.  Complementary to the RN2130MFV Equivalent Circuit Absolute Maximum Ratings (Ta = 25°C) 1.BASE VESM 2.EMITTER 3.COLLECTOR JEDEC JEITA TOSHIBA ― ― 1-1Q1S Weight: 1.5 mg (typ.
