Datasheet Details
Part number
RN1407
Manufacturer
Toshiba
File Size
519.80 KB
Description
Silicon NPN Epitaxial Type Transistors
Datasheet
Full PDF Text Transcription for RN1407 (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
RN1407 . For precise diagrams, and layout, please refer to the original PDF.

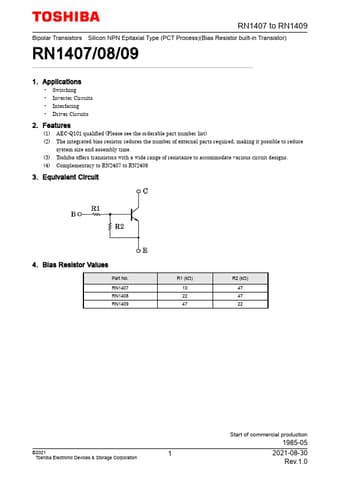

RN1407 to RN1409 Bipolar Transistors Silicon NPN Epitaxial Type (PCT Process)(Bias Resistor built-in Transistor) RN1407/08/09 1. Applications • Switching • Inverter Circu...
View more extracted text
Transistor) RN1407/08/09 1. Applications • Switching • Inverter Circuits • Interfacing • Driver Circuits 2. Features (1) AEC-Q101 qualified (Please see the orderable part number list) (2) The integrated bias resistor reduces the number of external parts required, making it possible to reduce system size and assembly time. (3) Toshiba offers transistors with a wide range of resistance to accommodate various circuit designs. (4) Complementary to RN2407 to RN2409 3. Equivalent Circuit 4. Bias Resistor Values Part No. RN1407 RN1408 RN1409 R1 (kΩ) 10 22 47 R2 (kΩ) 47 47 22 ©2021 1 Toshiba Electronic Devices & Storage Corporati
