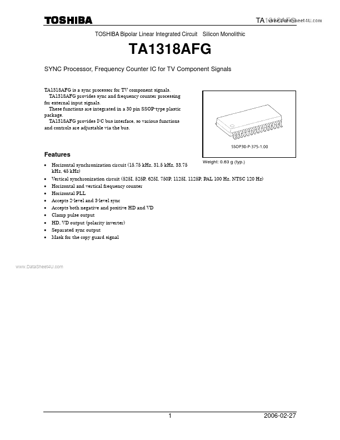

TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic
TA1318AFG
TA1318AFG
SYNC Processor, Frequency Counter IC for TV Component Signals
TA1318AFG is a sync processor for TV component signals.
TA1318AFG provides sync and frequency counter processing
for external input signals.
These functions are integrated in a 30 pin SSOP-type plastic
package.
TA1318AFG provides I2C bus interface, so various functions
and controls are adjustable via the bus.
Features
Horizontal synchronization circuit (15.75 kHz, 31.5 kHz, 33.75
kHz, 45 kHz)
Weight: 0.63 g (typ.)
Vertical synchronization circuit (525I, 525P, 625I, 750P, 1125I, 1125P, PAL 100 Hz, NTSC 120 Hz)
Horizontal and vertical frequency counter
Horizontal PLL
Accepts 2-level and 3-level sync
Accepts both negative and positive HD and VD
Clamp pulse output
HD, VD output (polarity inverter)
Separated sync output
Mask for the copy guard signal
www.DataSheet4U.com
1 2006-02-27


Toshiba Electronic Components Datasheet

TA1318AFG Datasheet

Frequency Counter IC

No Preview Available !

TA1318AFG pdf
Block Diagram
DAC3 VD2-OUT VD1-OUT NC SYNC1-IN DAC1 SYNC2-IN Address SW SCL
30 29 28 27 26 25 24 23 22
SDA
21
DAC3
SW
INV
SW
INV
SW
SYNC
SEPA
DAC1
SW
SYNC
SEPA
I2CBUS
Decoder
TEST DAC3 DV2-OUT DV1-OUT
SW SW
DAC1
TA1318AFG
NC HD2-OUT Digital GND NC HD1-OUT
20 19 18 17 16
INV INV
SW SW
HD2-OUT
SW
HD1-OUT
SW
H/V-
FREQ
Counter
V-SYNC
V-FREQ
DET SW
H/C-
SYNC
DAC2
DAC2
SW
H-FREQ
DET SW
V-Input
SW
V
Integral
H-INPUT
SW
V C/D
V-FREQ
SW
Clamp
Pulse
HD
Polarity
H-AFC
HVCO
CP
SW
2 × fH
H C/D
H-Ramp
H-FREQ
SW
1
HD2-IN
2
VD2-IN
3
HD1-IN
45
VD1-IN Analog GND
6
NC
7
AFC Filter
8
NC
2
9
HVCO
10
NC
11 12 13 14 15
VCC
DAC2
VD3-IN HD3-IN CP-OUT
