* Low distortion Weight: 4.04g (typ.) : THD = 0.06% (typ.) (VCC = 13.2V, f = 1kHz, POUT = 1W, RL = 4Ω, GV = 52dB)
* Low noise : VNO = 0.7mVrms (typ.) (VCC = 13.2V, RL = 4Ω, GV = 52dB, Rg = 10kΩ, BW = 20Hz~20kHz)
* Protector circuit : Thermal shut down, over voltage protection. O
TA8208H
Toshiba ↗ Semiconductor
903.20 KB
5.8w dual audio power amplifier.

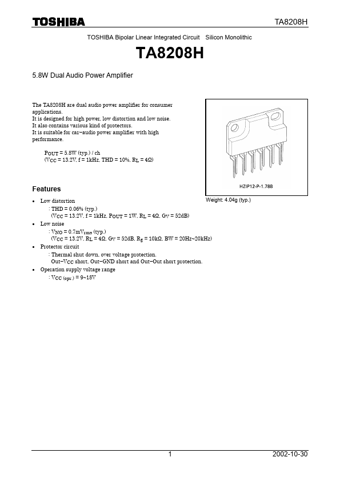

TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA8208H 5.8W Dual Audio Power Amplifier TA8208H The TA8208H are dual audio power amplif.
