MAAM000060 - Broadband CATV Amplifier

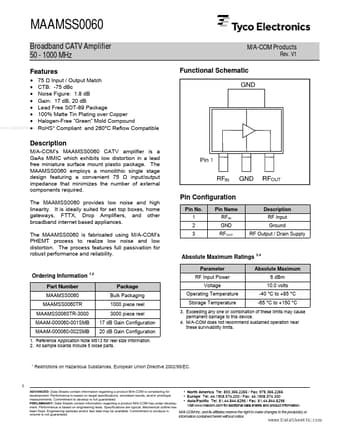

Download the MAAM000060 datasheet PDF (MAAM-000060 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for broadband catv amplifier.

Description

M/A-COM’s MAAMSS0060 CATV amplifier is a GaAs MMIC which exhibits low distortion in a lead free miniature surface mount plastic package.

Features

  • 75 Ω Input / Output Match.
  • CTB: -75 dBc.
  • Noise Figure: 1.8 dB.
  • Gain: 17 dB, 20 dB.
  • Lead Free SOT-89 Package.
  • 100% Matte Tin Plating over Copper.
  • Halogen-Free “Green” Mold Compound www. DataSheet4U. com.
  • RoHS.
  • Compliant and 260°C Reflow Compatible M/A-COM Products Rev. V1 Functional Schematic.
