1SMC5366 - SURFACE MOUNT SILICON ZENER DIODES

Download the 1SMC5366 datasheet PDF. This datasheet also covers the 1SMC5348 variant, as both devices belong to the same surface mount silicon zener diodes family and are provided as variant models within a single manufacturer datasheet.

Features

  • For surface mounted.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1SMC5348-UPM.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1SMC5366
Manufacturer UPM
File Size 554.78 KB
Description SURFACE MOUNT SILICON ZENER DIODES
Datasheet download datasheet 1SMC5366 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1SMC5366 SURFACE MOUNT SILICON ZENER DIODES PAN JIT
1SMC5366 SURFACE MOUNT SILICON ZENER DIODES CUMSUMI
1SMC5366B 5.0W SURFACE MOUNT ZENER DIODE WON-TOP
1SMC5366B SURFACE MOUNT SILICON ZENER DIODES Sunmate
1SMC5360 SURFACE MOUNT SILICON ZENER DIODES PAN JIT

Other Datasheets by UPM

Part Number Description
1SMC5360 SURFACE MOUNT SILICON ZENER DIODES
1SMC5361 SURFACE MOUNT SILICON ZENER DIODES
1SMC5362 SURFACE MOUNT SILICON ZENER DIODES
1SMC5363 SURFACE MOUNT SILICON ZENER DIODES
1SMC5364 SURFACE MOUNT SILICON ZENER DIODES

Full PDF Text Transcription

Click to expand full text

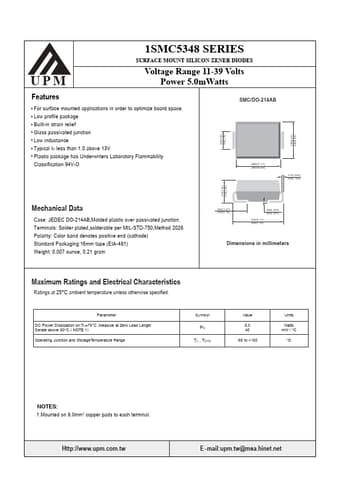

UPM 1SMC5348 SERIES SURFACE MOUNT SILICON ZENER DIODES Voltage Range 11-39 Volts Power 5.0mWatts Features * For surface mounted applications in order to optimize board space. * Low profile package * Built-in strain relief * Glass passivated junction * Low inductance * Typical ID less than 1.0 above 13V * Plastic package has Underwriters Laboratory Flammability Classification 94V-O .128(3.25) .108(2.75) SMC/DO-214AB .280(7.11) .260(6.60) .245(6.22) .220(5.59) .012(.305) .006(.152) .103(2.62) .079(2.00) Mechanical Data Case: JEDEC DO-214AB,Molded plastic over passivated junction. Terminals: Solder plated,solderable per MIL-STD-750,Method 2026 Polarity: Color band denotes positive end (cathode) Standard Packaging:16mm tape (EIA-481) Weight: 0.007 ounce, 0.21 gram .050(1.27) .030(0.
