3422 - HIGH PERFORMANCE DUAL BIPOLAR OPERATINAL AMPLIFIER

Description

The UTC 3422 is a dual high performances operational amplifier featuring speed of 25MHz and single supply operation from 3V ~ 36V.

The UTC 3422 is therefore an enhanced replacement of standard dual operational amplifiers.

Features

  • S.
  • Single Supply Operation: 3V ~ 36V.
  • Dual Supply Operation: ±1.5V ~ ±18V.
  • High Gain Bandwidth Product: 25MHz.
  • High Slew Rate: 15V/μs.
  • Low Voltage Noise: 14nV/√Hz.
  • No Phase Inversion.
  • ESD Tolerance: 2KV.
  • Latch-Up Immunity.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
3422 DIRECTION-DETECTION SENSORS Allegro MicroSystems
3422S Super Bright LED Lamp STANLEY
3421 HALL-EFFECT/ DIRECTION-DETECTION SENSORS Allegro MicroSystems
3425 DUAL/ CHOPPER-STABILIZED/ ULTRA-SENSITIVE/ BIPOLAR HALL-EFFECT SWITCH Allegro MicroSystems
3425L Surface Mount PTC Littelfuse

Other Datasheets by Unisonic Technologies

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

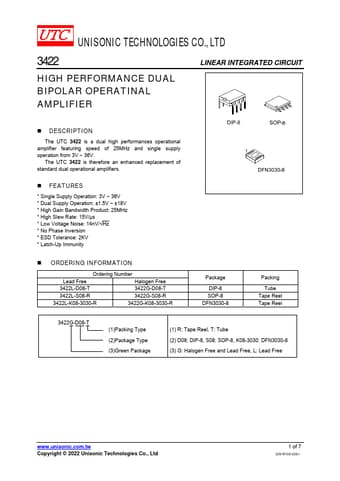

UNISONIC TECHNOLOGIES CO., LTD 3422 LINEAR INTEGRATED CIRCUIT HIGH PERFORMANCE DUAL BIPOLAR OPERATINAL AMPLIFIER  DESCRIPTION The UTC 3422 is a dual high performances operational amplifier featuring speed of 25MHz and single supply operation from 3V ~ 36V. The UTC 3422 is therefore an enhanced replacement of standard dual operational amplifiers.  FEATURES * Single Supply Operation: 3V ~ 36V * Dual Supply Operation: ±1.
