F2970 - FOR FAN MOTOR SINGLE-PHASE FULL-WAVE DRIVER

Description

The UTC F2970 is a single-phase full-wave bipolar driver control IC with excellent efficiency for fan motor.

Features

  • S.
  • Single-phase full-wave drive (16V to 1.2A transistors are built in).
  • Speed adjustment function by thermistor input and external signal incorporated →Enables silent and low-vibration variable speed control through direct PWM control with separately-excited upper tR.
  • Kick-back absorption circuit are built in.
  • Current limiter function (The limiter value determined with Rf, limit at IO=480mA with RL=1Ω connection,).
  • Low-consumption, low-loss, and low-noise drive enabled b.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
F2970 75 Ohm SP2T RF Switch IDT
F2971 SP2T RF Switch IDT
F2972 High Linearity Broadband SP2T IDT
F2976 High Linearity Broadband SP2T IDT
F2977 High Linearity Broadband SP2T IDT

Other Datasheets by Unisonic Technologies

Part Number Description
F2961 HIGH EFFICIENT DIRECT PWM DRIVE
F2962 HIGH EFFICIENT DIRECT PWM DRIVE
F2967 FOR VARIABLE SPEED FAN MOTOR SINGLE-PHASE FULL-WAVE PRE-DRIVER

Full PDF Text Transcription

Click to expand full text

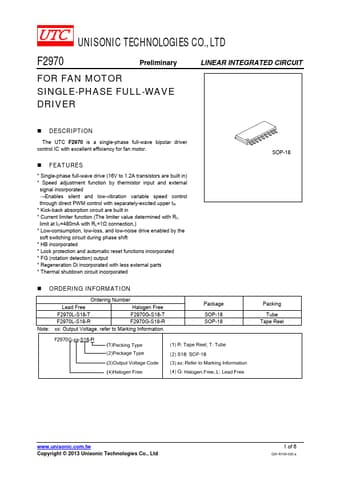

UNISONIC TECHNOLOGIES CO., LTD F2970 Preliminary LINEAR INTEGRATED CIRCUIT FOR FAN MOTOR SINGLE-PHASE FULL-WAVE DRIVER  DESCRIPTION The UTC F2970 is a single-phase full-wave bipolar driver control IC with excellent efficiency for fan motor.  FEATURES * Single-phase full-wave drive (16V to 1.
