MGBR15V40 Datasheet - UTC

MGBR15V40, MOS GATED BARRIER RECTIFIER

The UTC MGBR15V40 is a surface mount mos gated barrier rectifier, it uses UTC’s advanced technology to provide customers with low forward voltage drop and high current capability, etc. The UTC MGBR15V40 suitable for free wheeling, high frequency inverters, polarity protection, and low voltage. <.

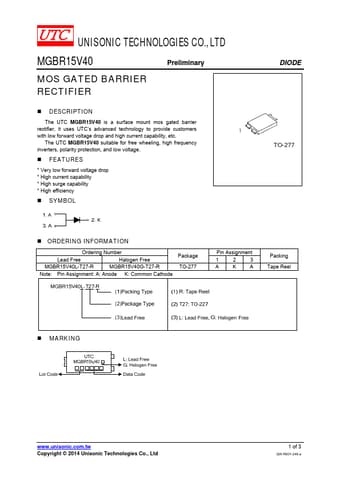

Datasheet Preview Page 1

MGBR15V40-UTC.pdf

MGBR15V40 Datasheet Preview — Preview of MGBR15V40 PDF

MGBR15V40 Datasheet Preview Page 2

MGBR15V40 Datasheet Preview Page 3

Datasheet Details

Part number:

MGBR15V40

Manufacturer:

UTC

File Size:

126.88 KB

Description:

MOS GATED BARRIER RECTIFIER

MGBR15V40 Features

* Very low forward voltage drop

* High current capability

* High surge capability

* High efficiency

* SYMBOL DIODE

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free MGBR15V40L-T27-R MGBR15V40G-T27-R Note: Pin Assignment: A: Anode K: Common Cathode
