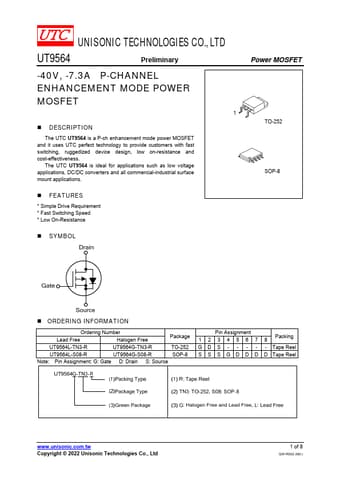

UT9564
DESCRIPTION
The UTC UT9564 is a P-ch enhancement mode power MOSFET and it uses UTC perfect technology to provide customers with fast switching, ruggedized device design, low on-resistance and cost-effectiveness.
The UTC UT9564 is ideal for applications such as low voltage applications, DC/DC converters and all mercial-industrial surface mount applications.
- FEATURES
- Simple Drive Requirement
- Fast Switching Speed
- Low On-Resistance
- SYMBOL
Power MOSFET
TO-252 SOP-8
- ORDERING INFORMATION
Ordering Number
Lead Free
Halogen Free
Package
UT9564L-TN3-R
UT9564G-TN3-R
TO-252
UT9564L-S08-R
UT9564G-S08-R
SOP-8
Note: Pin Assignment: G: Gate D: Drain S: Source
Pin Assignment 12345678
Packing
- -
- -
- Tape Reel
S S S G D D D D Tape Reel
.unisonic..tw Copyright © 2022 Unisonic Technologies Co., Ltd
1 of 8
QW-R502-390.I
- MARKING
TO-252
Power MOSFET
SOP-8
UNISONIC TECHNOLOGIES CO., LTD
.unisonic..tw
2 of 8
QW-R502-390.I...
