UTXS0104 Datasheet - UTC

UTXS0104, 4-BIT BIDIRECTIONAL VOLTAGE-LEVEL TRANSLATOR

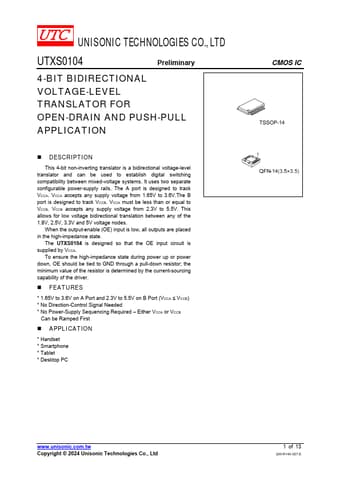

This 4-bit non-inverting translator is a bidirectional voltage-level translator and can be used to establish digital switching compatibility between mixed-voltage systems. It uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from.

Datasheet Preview Page 1

UTXS0104-UTC.pdf

UTXS0104 Datasheet Preview — Preview of UTXS0104 PDF

UTXS0104 Datasheet Preview Page 2

UTXS0104 Datasheet Preview Page 3

Datasheet Details

Part number:

UTXS0104

Manufacturer:

UTC

File Size:

339.25 KB

Description:

4-BIT BIDIRECTIONAL VOLTAGE-LEVEL TRANSLATOR

UTXS0104 Features

* 1.65V to 3.6V on A Port and 2.3V to 5.5V on B Port (VCCA ≤ VCCB)

* No Direction-Control Signal Needed

* No Power-Supply Sequencing Required

* Either VCCA or VCCB Can be Ramped First

* APPLICATION

* Handset

* Smartphone

* Tablet

* Desktop PC CMOS IC www.uni
