2N3418S - NPN Medium Power Silicon Transistor

This page provides the datasheet information for the 2N3418S, a member of the 2N3418 NPN Medium Power Silicon Transistor family.

Datasheet Summary

Features

Available in JAN, JANTX, JANTXV, JANS and JANSR 100K rads(Si) per MIL-PRF-19500/393.
TO-5 & TO-39 (TO-205AD) Packages.
Ideal for Medium Power.

Datasheet Details

Part number	2N3418S
Manufacturer	VPT
File Size	421.73 KB
Description	NPN Medium Power Silicon Transistor
Datasheet	2N3418S Datasheet

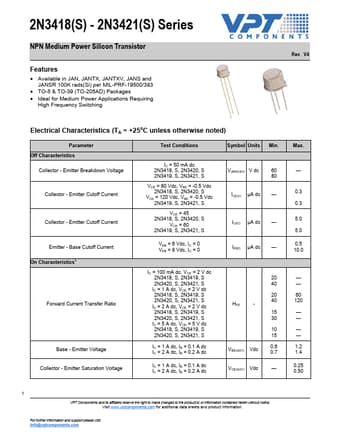

Additional preview pages of the 2N3418S datasheet.

📁 Similar Datasheet

2N3418S - NPN Meduim Power Silicon Transistor (Aeroflex)

2N3418S - NPN Medium Power Silicon Transistor (MA-COM)

2N3418 - NPN MEDIUM POWER SILICON TRANSISTOR (Microsemi Corporation)

2N3418 - Power Transistors (UNITRODE)

2N3418 - NPN Medium Power Silicon Transistor (MA-COM)

2N3418 - NPN Meduim Power Silicon Transistor (Aeroflex)

2N341 - N-P-N GROWN SILICON TRANSISTORS (New Jersey Semi-Conductor)

2N3410DCSM - Dual Bipolar NPN Devices (Semelab Plc)

2N3414 - NPN SILICON TRANSISTOR (Micro Electronics)

2N3414 - NPN SILICON TRANSISTOR (Central Semiconductor)

Full PDF Text Transcription

Click to expand full text

2N3418(S) - 2N3421(S) Series NPN Medium Power Silicon Transistor Features • Available in JAN, JANTX, JANTXV, JANS and JANSR 100K rads(Si) per MIL-PRF-19500/393 • TO-5 & TO-39 (TO-205AD) Packages • Ideal for Medium Power Applications Requiring High Frequency Switching Rev. V4 Electrical Characteristics (TA = +25oC unless otherwise noted) Parameter Off Characteristics Collector - Emitter Breakdown Voltage Collector - Emitter Cutoff Current Collector - Emitter Cutoff Current Test Conditions Symbol Units Min. IC = 50 mA dc 2N3418, S, 2N3420, S 2N3419, S, 2N3421, S VCE = 80 Vdc, VBE = -0.5 Vdc 2N3418, S, 2N3420, S VCE = 120 Vdc, VBE = -0.
