| Description | section explains how to optimize the configuration of the QPO-1 for the voltage source used. The headroom voltage is the difference between the input and the output of the QPO-1 and is set by the selection of resistor RHR. Calculate RHR as shown. RHR = (QPOOUT / VHR ) x 2.5k (see Table 1 for example values) (2) RSS resistor sets the correction current required to trim the source output up to acc... |
| Features |
• >20dB PARD attenuation from 50Hz to 500kHz • Supports point of load regulation • Peak ripple detector optimizes performance automatically • Significantly improves load transient response • Efficiency up to 98% • User selectable performance optimization • 3-30Vdc operating range • 10A rating TM Output Ripple Attenuation SiP Patents Pending Show... |

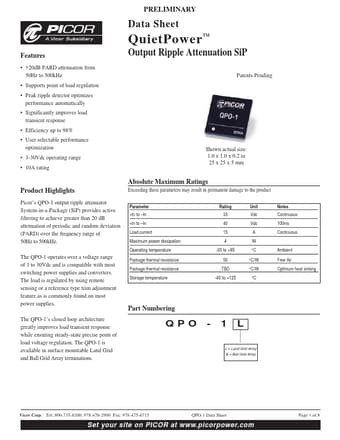

| Datasheet |
 QUIETPOWER Datasheet - 144.68KB |
