60EPF10
60EPF10 is Fast Soft Recovery Rectifier Diode manufactured by Vishay.

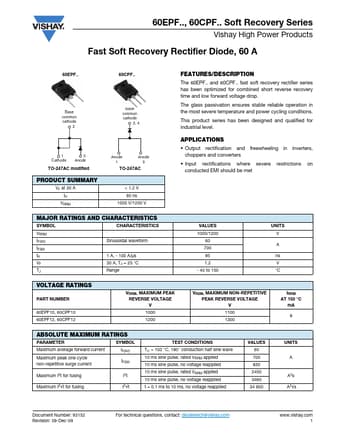

60EPF.., 60CPF.. Soft Recovery Series
Vishay High Power Products
Fast Soft Recovery Rectifier Diode, 60 A
60EPF..
60CPF..
Base mon cathode
Base mon cathode
2, 4
1 Cathode
3 Anode
TO-247AC modified
PRODUCT SUMMARY
VF at 30 A trr
VRRM
Anode 1
Anode 3
TO-247AC
< 1.2 V 95 ns 1000 V/1200 V
Features
/DESCRIPTION The 60EPF.. and 60CPF.. fast soft recovery rectifier series has been optimized for bined short reverse recovery time and low forward voltage drop.
The glass passivation ensures stable reliable operation in the most severe temperature and power cycling conditions.
This product series has been designed and qualified for industrial level.
APPLICATIONS
- Output rectification and freewheeling in inverters, choppers and converters
- Input rectifications where severe restrictions on conducted EMI should be met
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
CHARACTERISTICS
VRRM IF(AV) IFSM trr VF TJ
Sinusoidal...
