BAV20W, BAV19W - Small Signal Switching Diodes

Name: BAV20W
SKU: BAV20W-952284

Vishay

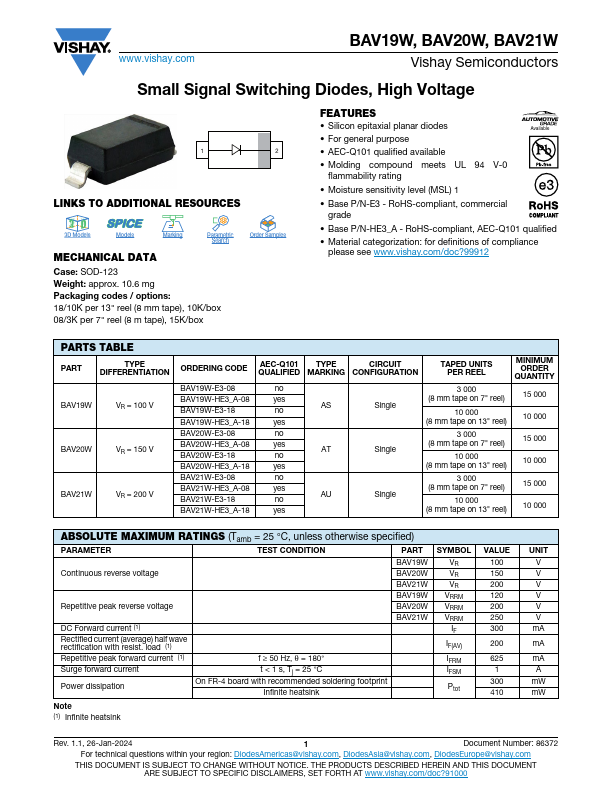

The BAV20W by Vishay is a Small Signal Switching Diodes. Below is the official datasheet preview.

Datasheet Details

Part number	BAV20W, BAV19W
Manufacturer	Vishay
File Size	121.07 KB
Description	Small Signal Switching Diodes
Datasheet	BAV19W-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: BAV20W, BAV19W. Please refer to the document for exact specifications by model.

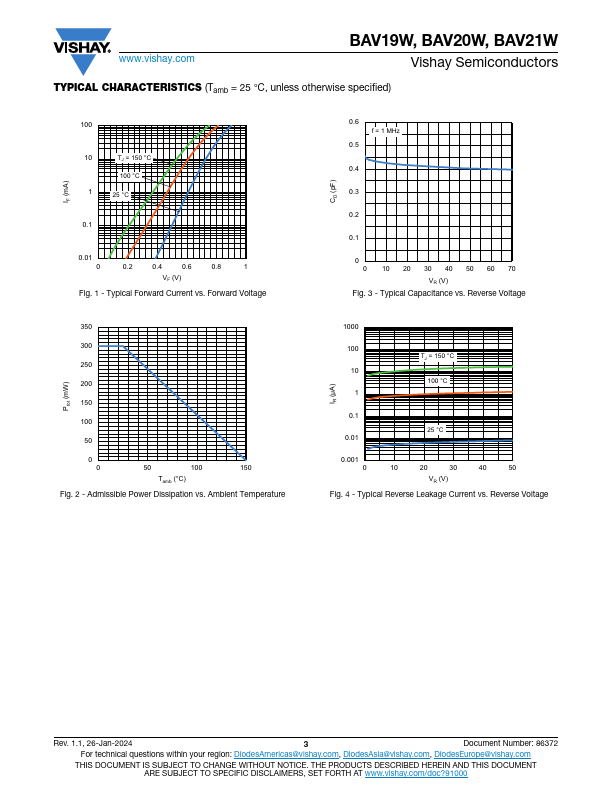

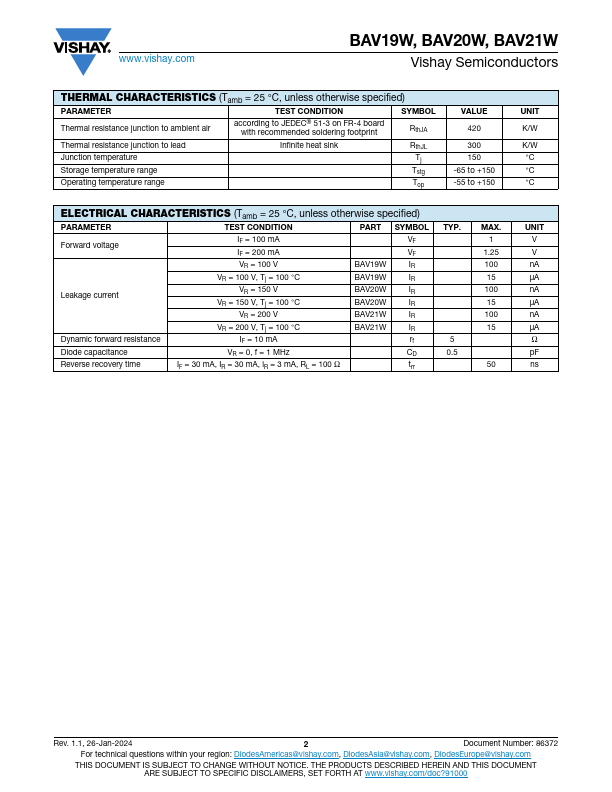

Additional preview pages of the BAV20W datasheet.

Silicon epitaxial planar diodes.
For general purpose Available.
AEC-Q101 qualified available.
Molding compound meets UL 94 V-0 flammability rating.
Moisture sensitivity level (MSL) 1.
Base P/N-E3 - RoHS-compliant, commercial grade.
Base P/N-HE3_A - RoHS-compliant, AEC-Q101 qualified.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 PARTS TABLE PART TYPE.
