IL212AT - Optocoupler

This page provides the datasheet information for the IL212AT, a member of the IL211AT Optocoupler family.

Description

The IL211AT, IL212AT, IL213AT are optically coupled pairs with a gallium arsenide infrared LED and silicon NPN phototransistor.

Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output.

Features

  • Isolation test voltage, 4000 VRMS.
  • Industry standard SOIC-8 surface mountable package.
  • Compatible with dual wave, vapor phase and IR reflow soldering.
  • Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC i179025.

📥 Download Datasheet

Datasheet preview – IL212AT

Datasheet Details

Part number IL212AT
Manufacturer Vishay
File Size 124.49 KB
Description Optocoupler
Datasheet download datasheet IL212AT Datasheet
Additional preview pages of the IL212AT datasheet.

📁 Similar Datasheet

  • IL212AT - PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLER (Siemens Semiconductor Group)
  • IL212A - PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLER (Siemens Semiconductor Group)
  • IL212 - PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLER (Siemens Semiconductor Group)
  • IL211 - PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLER (Siemens Semiconductor Group)
  • IL211A - PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLER (Siemens Semiconductor Group)
  • IL211AT - PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLER (Siemens Semiconductor Group)
  • IL213 - PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLER (Siemens Semiconductor Group)
  • IL213A - PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLER (Siemens Semiconductor Group)
  • IL213AT - PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLER (Siemens Semiconductor Group)
  • IL215 - PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLER (Siemens Semiconductor Group)
Other Datasheets by Vishay

Full PDF Text Transcription

Click to expand full text

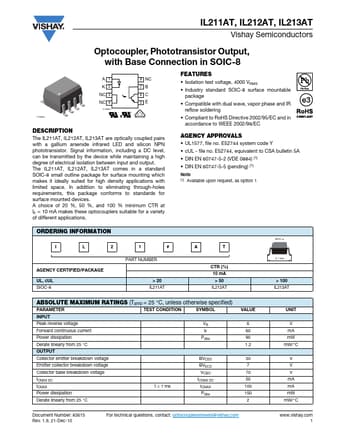

IL211AT, IL212AT, IL213AT Vishay Semiconductors Optocoupler, Phototransistor Output, with Base Connection in SOIC-8 A 1 K 2 NC 3 NC 4 i179002-1 8 7 6 5 V D E NC B C E FEATURES • Isolation test voltage, 4000 VRMS • Industry standard SOIC-8 surface mountable package • Compatible with dual wave, vapor phase and IR reflow soldering • Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC i179025 DESCRIPTION The IL211AT, IL212AT, IL213AT are optically coupled pairs with a gallium arsenide infrared LED and silicon NPN phototransistor. Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output.
