ILD205T - Optocoupler

Description

The ILD205T, ILD206T, ILD207T, ILD211T, and ILD213T are optically coupled pairs with a GaAs infrared LED and a silicon NPN phototransistor.

Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output.

Features

  • Two channel coupler.
  • SOIC-8 surface mountable package.
  • Standard lead spacing of 0.05".
  • Available only on tape and reel option (conforms to EIA standard 481-2).
  • Isolation test voltage, 4000 VRMS.
  • Compatible with dual wave, vapor phase and IR reflow soldering.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 AGENCY.

📥 Download Datasheet

Datasheet Details

Part number ILD205T
Manufacturer Vishay
File Size 155.18 KB
Description Optocoupler
Datasheet download datasheet ILD205T Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ILD205T Dual Phototransistor Infineon
ILD205 DUAL PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLER Siemens Semiconductor Group
ILD206 DUAL PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLER Siemens Semiconductor Group
ILD206T Dual Phototransistor Infineon
ILD207 DUAL PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLER Siemens Semiconductor Group

Other Datasheets by Vishay

Part Number Description
ILD206T Optocoupler
ILD207T Optocoupler
ILD211T Optocoupler
ILD213T Optocoupler
ILD217T Optocoupler

Full PDF Text Transcription

Click to expand full text

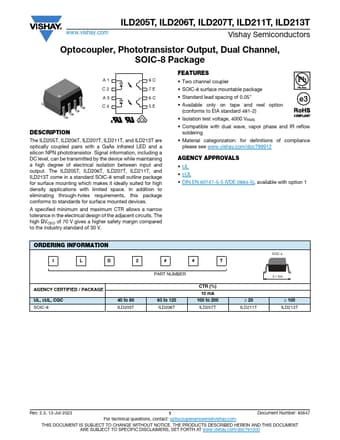

ILD205T, ILD206T, ILD207T, ILD211T, ILD213T www.vishay.com Vishay Semiconductors Optocoupler, Phototransistor Output, Dual Channel, SOIC-8 Package A1 8C C2 7E A3 6C C4 5E DESCRIPTION The ILD205T, ILD206T, ILD207T, ILD211T, and ILD213T are optically coupled pairs with a GaAs infrared LED and a silicon NPN phototransistor. Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output. The ILD205T, ILD206T, ILD207T, ILD211T, and ILD213T come in a standard SOIC-8 small outline package for surface mounting which makes it ideally suited for high density applications with limited space.
