LH1540AAB Datasheet - Vishay

1 Form A Solid-State Relay

LH1540AAB Features

* Current limit protection

* Isolation test voltage 5300 VRMS A1 6 S1

* Typical RON 22 Ω

* Load voltage 350 V C2 5 DC

* Load current 120 mA / 250 mA

* Clean bounce free switching 3 4 S2

* Low power consumption

* Material cate

LH1540AAB General Description

The LH1540 is robust, ideal for telecom and ground fault applications. It is an SPST normally open switch (1 Form A) that replaces electromechanical relays in many applications. It is constructed using a GaAlAs LED for actuation control and MOSFETs for the switch output. In addition, it employs curr.

LH1540AAB Datasheet (204.64 KB)

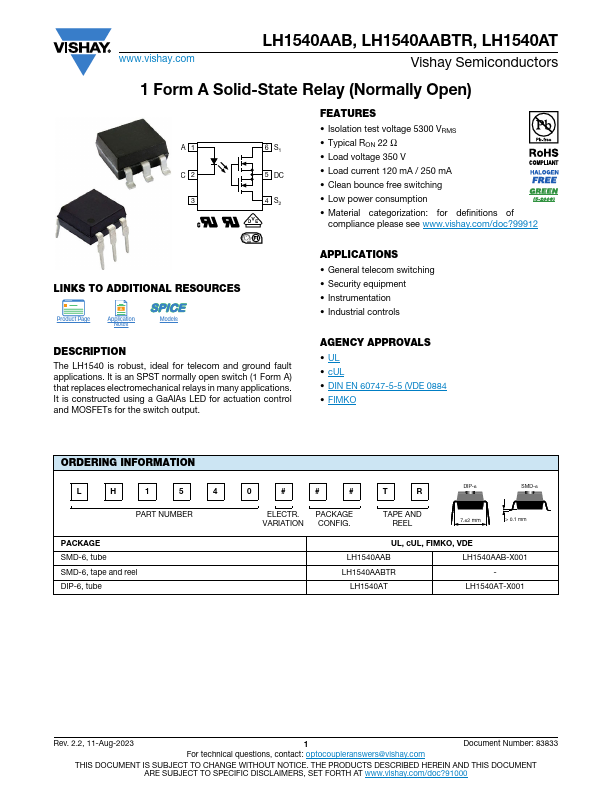

Preview of LH1540AAB PDF

Datasheet Details

Part number:

LH1540AAB

Manufacturer:

Vishay ↗

File Size:

204.64 KB

Description:

1 form a solid-state relay.

📁 Related Datasheet

LH1540AAB 1 Form A Solid State Relay (Infineon Technologies)

LH1540AABTR 1 Form A Solid State Relay (Infineon Technologies)

LH1540AABTR 1 Form A Solid-State Relay (Vishay)

LH1540AT 1 Form A Solid State Relay (Infineon Technologies)

LH1540AT 1 Form A Solid-State Relay (Vishay)

LH1540 HIGH VOLTAGE/ SOLID STATE RELAY OPTOCOUPLER (Siemens Semiconductor Group)

LH1540 High Voltage Optically Coupled Solid (Siemens)

LH1541 High Voltage Optically Coupled Solid (Siemens)

LH1541AAB1 1 Form A Solid State Relay (Vishay Siliconix)

LH1541AAB1 1 Form A Solid State Relay (Vishay Siliconix)

TAGS

LH1540AAB Form Solid-State Relay Vishay

Image Gallery

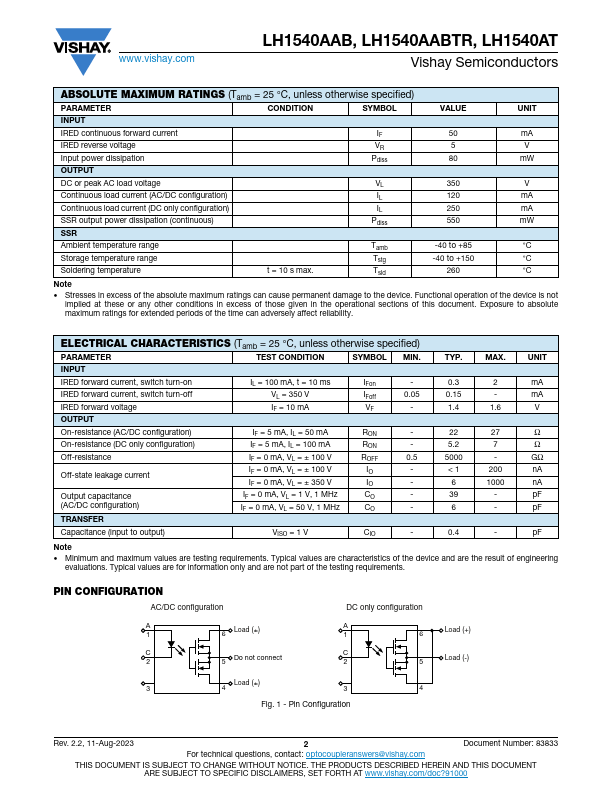

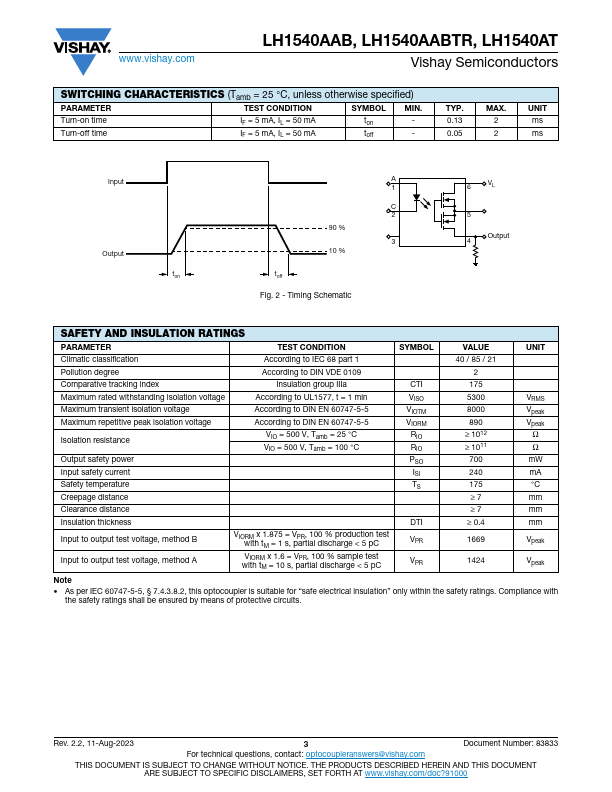

LH1540AAB Datasheet Preview Page 2 LH1540AAB Datasheet Preview Page 3
