MBRB2090CT-E3 - Dual Common-Cathode High Voltage Trench MOS Barrier Schottky Rectifier

This page provides the datasheet information for the MBRB2090CT-E3, a member of the MBR2090CT-E3 Dual Common-Cathode High Voltage Trench MOS Barrier Schottky Rectifier family.

Features

  • Trench MOS Schottky technology.
  • Lower power losses, high efficiency.
  • Low forward voltage drop.
  • High forward surge capability.
  • High frequency operation.
  • Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package).
  • Solder bath temperature 275 °C maximum, 10 s, per JESD 22-B106 (for TO-220AB and ITO-220AB package).
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

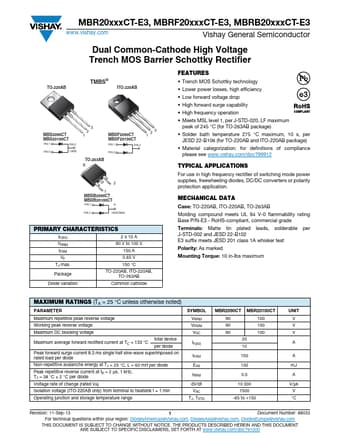

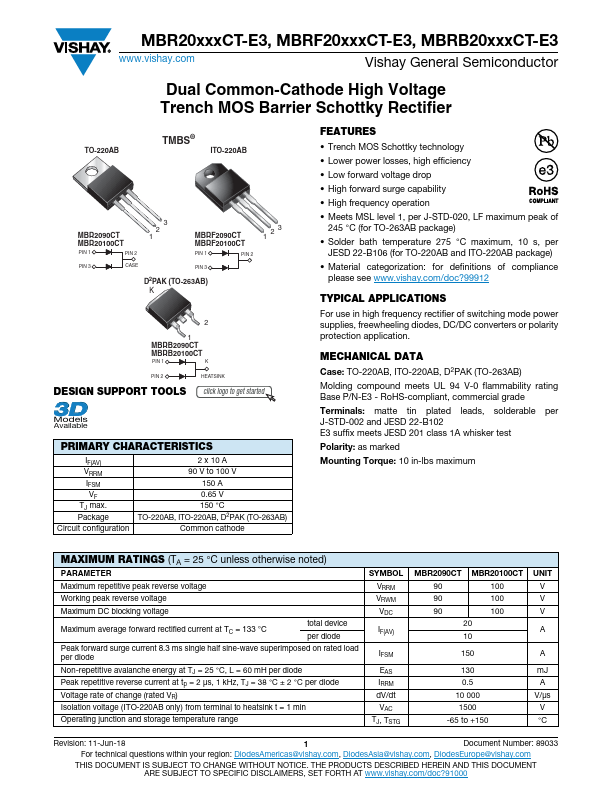

Datasheet preview – MBRB2090CT-E3

Datasheet Details

Part number MBRB2090CT-E3
Manufacturer Vishay
File Size 204.12 KB
Description Dual Common-Cathode High Voltage Trench MOS Barrier Schottky Rectifier
Datasheet download datasheet MBRB2090CT-E3 Datasheet

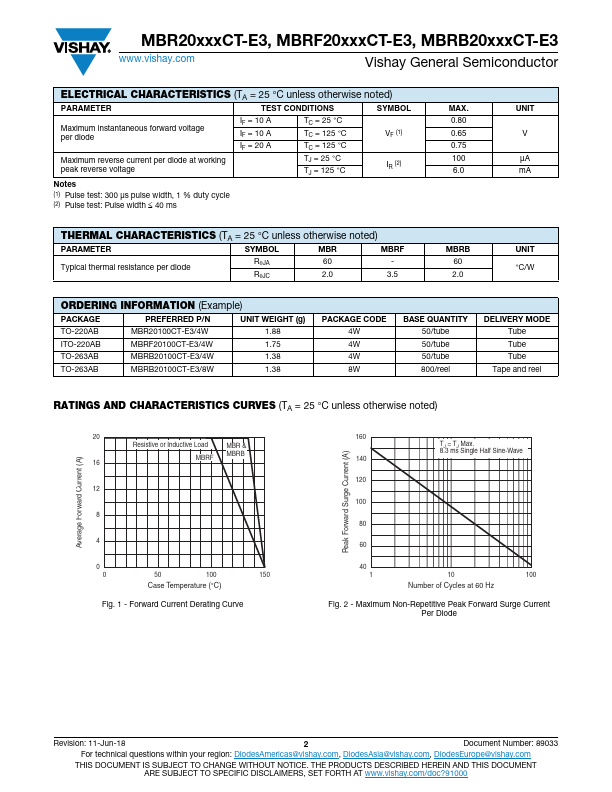

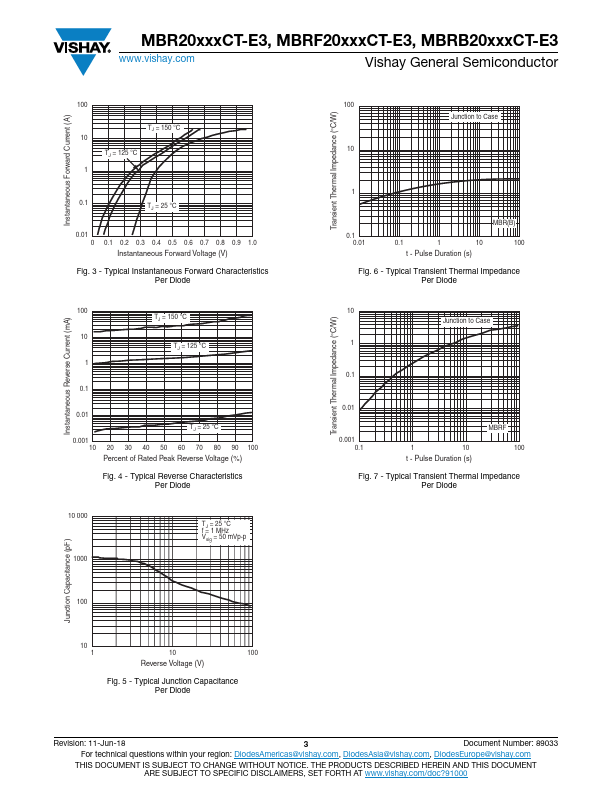

Additional preview pages of the MBRB2090CT-E3 datasheet.

📁 Similar Datasheet

  • MBRB2090CT-1 - SCHOTTKY RECTIFIER (International Rectifier)
  • MBRB2090CT - SCHOTTKY RECTIFIER (International Rectifier)
  • MBRB2090CT - 20A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
  • MBRB2090CT - Dual High-Voltage Schottky Rectifiers (Vishay Siliconix)
  • MBRB2090CT - SCHOTTKY RECTIFIER (SMC Diode)
  • MBRB2090CT - 20.0 Ampere Surface Mount Schottky Barrier Rectifiers (Thinki Semiconductor)
  • MBRB2090CTPbF - SCHOTTKY RECTIFIER (International Rectifier)
  • MBRB20080CT - SCHOTTKY RECTIFIER (International Rectifier)
  • MBRB20080CT-1 - SCHOTTKY RECTIFIER (International Rectifier)
  • MBRB20090CT - SCHOTTKY RECTIFIER (International Rectifier)
Other Datasheets by Vishay

Full PDF Text Transcription

Click to expand full text
MBR20xxxCT-E3, MBRF20xxxCT-E3, MBRB20xxxCT-E3 www.vishay.com Vishay General Semiconductor Dual Common-Cathode High Voltage Trench MOS Barrier Schottky Rectifier TO-220AB TMBS® ITO-220AB MBR2090CT MBR20100CT PIN 1 PIN 2 3 2 1 MBRF2090CT MBRF20100CT PIN 1 PIN 2 PIN 3 CASE PIN 3 D2PAK (TO-263AB) K 123 2 1 MBRB2090CT MBRB20100CT PIN 1 K PIN 2 HEATSINK DESIGN SUPPORT TOOLS click logo to get started Models Available PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF TJ max. Package Circuit configuration 2 x 10 A 90 V to 100 V 150 A 0.
