SFH690A - Optocoupler

Vishay

Download the SFH690A datasheet PDF. This datasheet also covers the SFH690AB variant, as both devices belong to the same optocoupler family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

SFH690A optocoupler by Vishay - Datasheet Preview — Note: The manufacturer provides a single datasheet file (SFH690AB-Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	SFH690A
Manufacturer	Vishay
File Size	132.39 KB
Description	Optocoupler
Datasheet	SFH690A Datasheet

General Description

The SFH690ABT, SFH690AT, SFH690BT, SFH690CT, SFH690DT family has a GaAs infrared emitting diode emitter, which is optically coupled to a silicon planar phototransistor detector, and is incorporated in a 4 pin 100 mil lead pitch miniflat package.

Overview

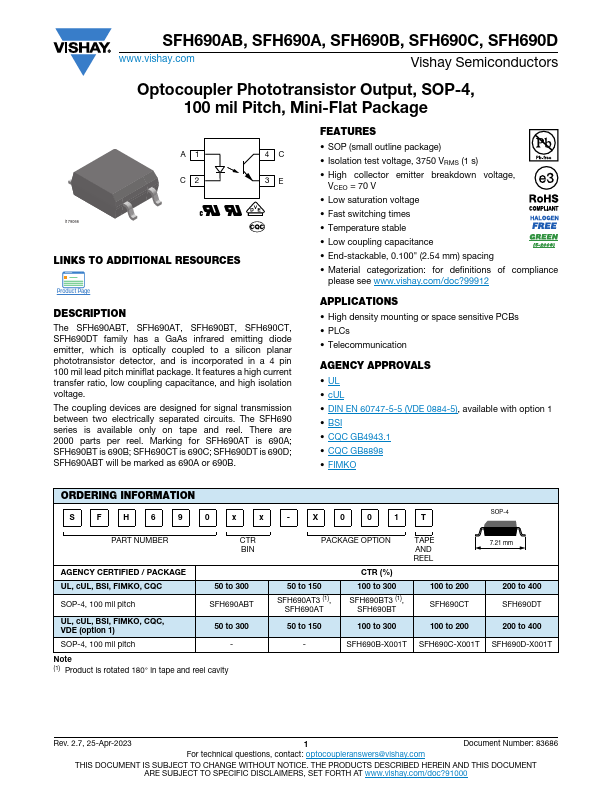

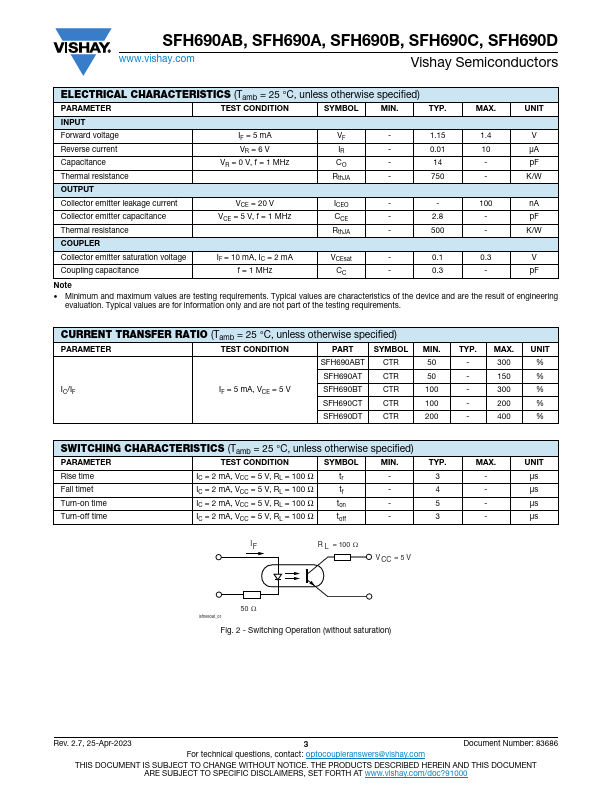

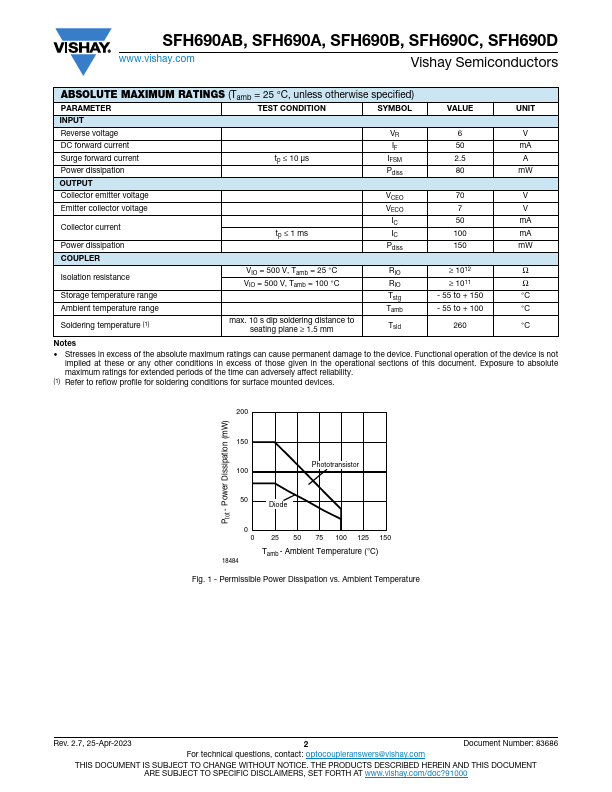

SFH690AB, SFH690A, SFH690B, SFH690C, SFH690D www.vishay.com Vishay Semiconductors Optocoupler Phototransistor Output, SOP-4, 100 mil Pitch, Mini-Flat Package A1 C2 4C 3E i179066 LINKS TO ADDITIONAL RESOURCES Product.

Key Features

a high current transfer ratio, low coupling capacitance, and high isolation voltage. The coupling devices are designed for signal transmission between two electrically separated circuits. The SFH690 series is available only on tape and reel. There are 2000 parts per reel. Marking for SFH690AT is 690A; SFH690BT is 690B; SFH690CT is 690C; SFH690DT is 690D; SFH690ABT will be marked as 690A or 690B.
