SiHL540S Datasheet - Vishay

Power MOSFET

SiHL540S Features

* Halogen-free According to IEC 61249-2-21 Definition

* Surface Mount

* Available in Tape and Reel

* Dynamic dV/dt Rating

* Repetitive Avalanche Rated

* Logic-Level Gate Drive

* RDS(on) Specified at VGS = 4 V and 5 V

* 175 °C Operating

SiHL540S General Description

Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The D2PAK (TO-263) is a surface mount power package capable of accommodating die size up to HEX-4. It provides the highest .

SiHL540S Datasheet (270.25 KB)

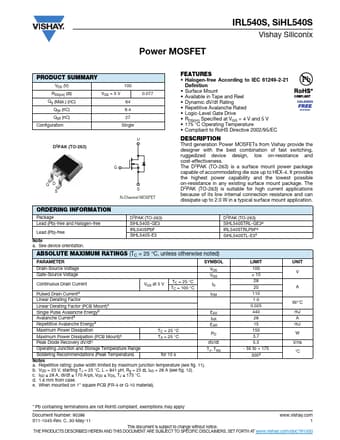

SiHL540S Datasheet Preview — Preview of SiHL540S PDF

Datasheet Details

Part number:

SiHL540S

Manufacturer:

Vishay ↗

File Size:

270.25 KB

Description:

Power mosfet.
Power MOSFET IRL540S, SiHL540S Vishay Siliconix PRODUCT SUMMARY VDS (V) RDS(on) () Qg (Max.) (nC) 100 VGS = 5 V 64 Qgs (nC) 9.4 Qgd (nC) 27 .
