VBPW34SR - Silicon PIN Photodiode

Download the VBPW34SR datasheet PDF. This datasheet also covers the VBPW34S variant, as both devices belong to the same silicon pin photodiode family and are provided as variant models within a single manufacturer datasheet.

Description

VBPW34S and VBPW34SR are high speed and high sensitive PIN photodiodes.

It is a surface mount device (SMD) including the chip with a 7.5 mm2 sensitive area detecting visible and near infrared radiation.

Features

  • Package type: surface-mount.
  • Package form: GW, RGW.
  • Dimensions (L x W x H in mm): 6.4 x 3.9 x 1.2.
  • Radiant sensitive area (in mm2): 7.5.
  • High photo sensitivity.
  • High radiant sensitivity.
  • Suitable for visible and near infrared radiation.
  • Fast response times.
  • Angle of half sensitivity: ϕ = ± 65°.
  • Floor life: 168 h, MSL 3, according to J-STD-020.
  • Lead (Pb)-free reflow soldering.
  • Material cat.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (VBPW34S_Vishay.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number VBPW34SR
Manufacturer Vishay
File Size 200.48 KB
Description Silicon PIN Photodiode
Datasheet download datasheet VBPW34SR Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
VBP1104N N-Channel MOSFET VBsemi
VBP1106 N-Channel MOSFET VBsemi
VBP112MC100 N-Channel MOSFET VBsemi
VBP112MC100-4L N-Channel MOSFET VBsemi
VBP112MC60 N-Channel MOSFET VBsemi

Other Datasheets by Vishay

Part Number Description
VBPW34S Silicon PIN Photodiode
VBPW34FAS Silicon PIN Photodiode
VBPW34FASR Silicon PIN Photodiode
VBP104FAS Silicon PIN Photodiode
VBP104FASR Silicon PIN Photodiode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

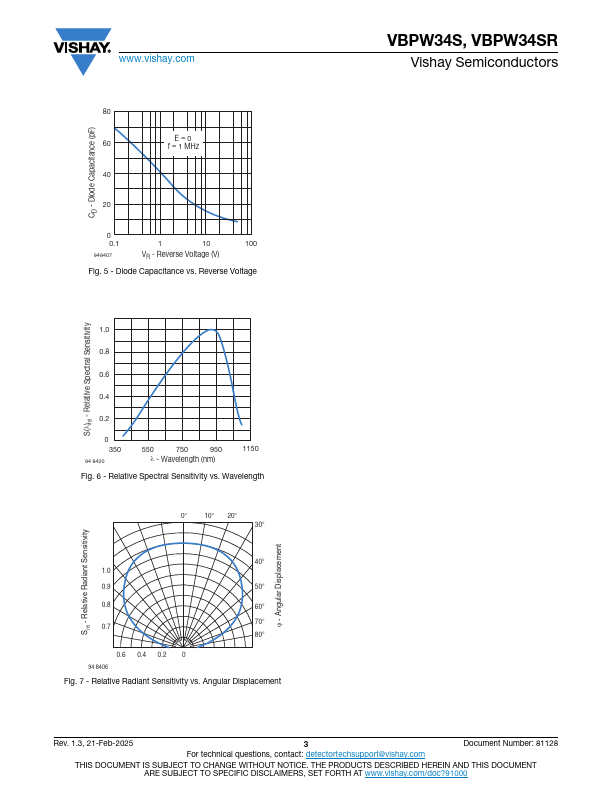

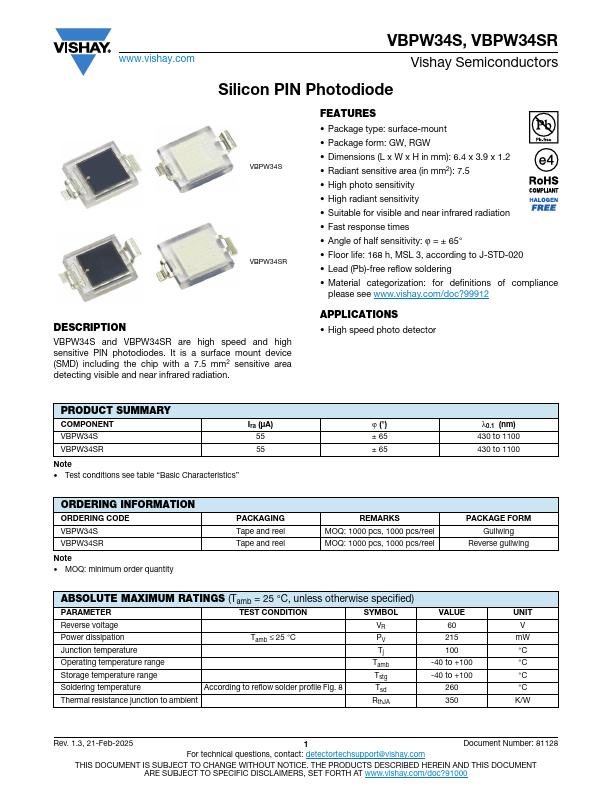

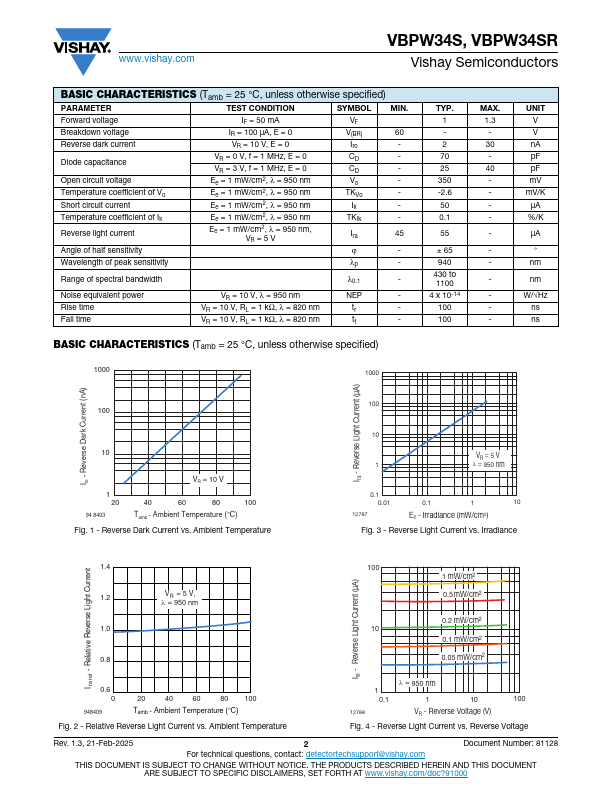

www.vishay.com VBPW34S, VBPW34SR Vishay Semiconductors Silicon PIN Photodiode VBPW34S VBPW34SR DESCRIPTION VBPW34S and VBPW34SR are high speed and high sensitive PIN photodiodes. It is a surface mount device (SMD) including the chip with a 7.5 mm2 sensitive area detecting visible and near infrared radiation. FEATURES • Package type: surface-mount • Package form: GW, RGW • Dimensions (L x W x H in mm): 6.4 x 3.9 x 1.2 • Radiant sensitive area (in mm2): 7.5 • High photo sensitivity • High radiant sensitivity • Suitable for visible and near infrared radiation • Fast response times • Angle of half sensitivity: ϕ = ± 65° • Floor life: 168 h, MSL 3, according to J-STD-020 • Lead (Pb)-free reflow soldering • Material categorization: for definitions of compliance please see www.vishay.
