VSC7226 - Quad Multi-Gigabit Backplane Transceiver

Name: VSC7226
SKU: VSC7226-541750

Vitesse Semiconductor

📥 Download Datasheet

VSC7226 Datasheet Preview — Preview of VSC7226 PDF

Datasheet Details

Part number	VSC7226
Manufacturer	Vitesse Semiconductor
File Size	742.47 KB
Description	Quad Multi-Gigabit Backplane Transceiver
Datasheet	VSC7226_VitesseSemiconductor.pdf

VSC7226 Product details

Description

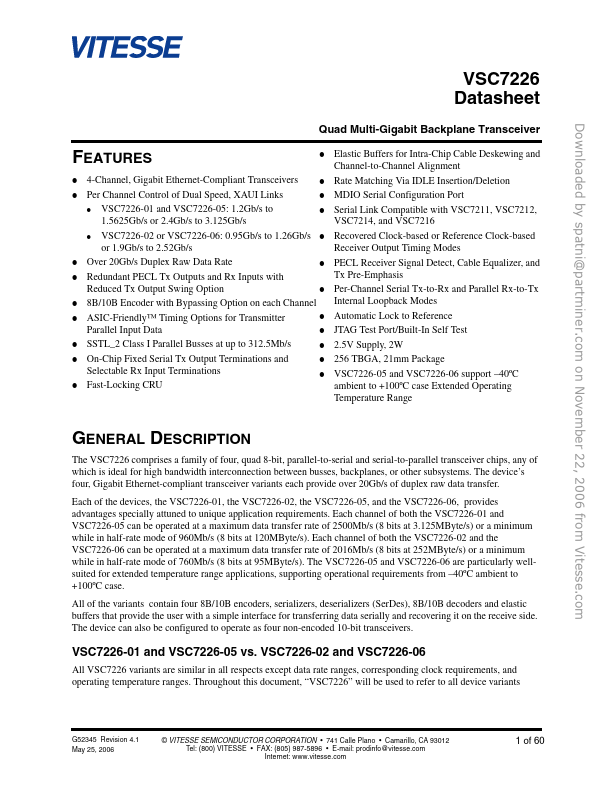

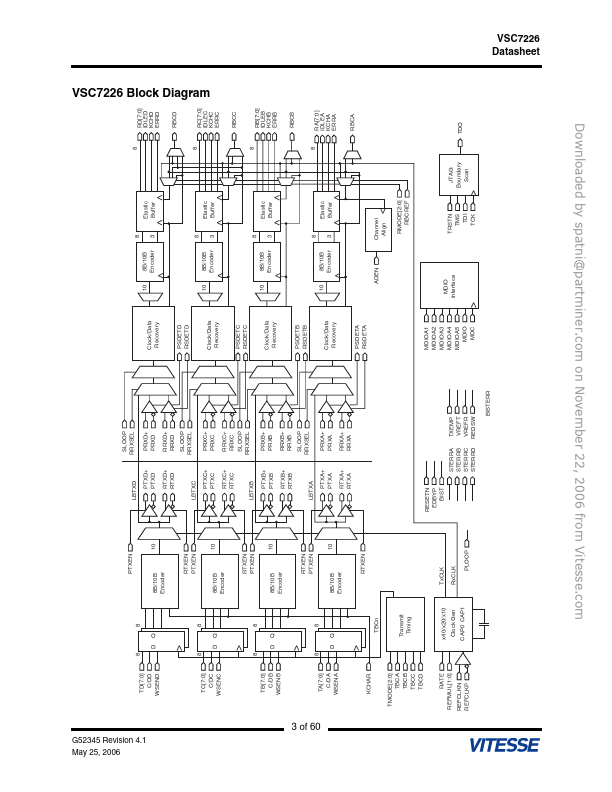

The VSC7226 comprises a family of four, quad 8-bit, parallel-to-serial and serial-to-parallel transceiver chips, any of which is ideal for high bandwidth interconnection between busses, backplanes, or other subsystems.

Features

4-Channel, Gigabit Ethernet-Compliant Transceivers.
Per Channel Control of Dual Speed, XAUI Links.
VSC7226-01 and VSC7226-05: 1.2Gb/s to.
1.5625Gb/s or 2.4Gb/s to 3.125Gb/s.
VSC7226-02 or VSC7226-06: 0.95Gb/s to 1.26Gb/s.
or 1.9Gb/s to 2.52Gb/s.
Over 20Gb/s Duplex Raw Data Rate.
Redundant PECL Tx Outputs and Rx Inputs with Reduced Tx Output Swing Option.
8B/10B Encoder with Bypassing Option on each Channel.
