15KPA220CA - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

Download the 15KPA220CA datasheet PDF (15KPA17A included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for glass passivated junction transient voltage suppressor.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (15KPA17A-WEITRON.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 15KPA220CA
Manufacturer WEITRON
File Size 291.67 KB
Description GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
Datasheet download datasheet 15KPA220CA Datasheet

📁 Similar Datasheet

  • 15KPA220CA - 15KW Transient Voltage Suppressor (TAITRON)
  • 15KPA220CA - Transient Voltage Suppression Diodes (Littelfuse)
  • 15KPA220CA - Glass Passivated Junction TVS (LGE)
  • 15KPA220CA - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR (LRC)
  • 15KPA220CA - Axial Lead Transient Voltage Suppressors (ANOVA)
  • 15KPA220CA - 15KW AXIAL LEADED TRANSIENT VOLTAGE SUPPRESSORS (Frontier Electronics)
  • 15KPA220CA-HR - TVS Diodes (Littelfuse)
  • 15KPA220CAe3 - TVS (Microsemi)
  • 15KPA220 - 15000W TRANSIENT VOLTAGE SUPPRESSOR (DIGITRON)
  • 15KPA220 - 15kW POWER TVS COMPONENT (ProTek Devices)
Other Datasheets by WEITRON
  • 15KPA220A - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
  • 15KPA22A - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
  • 15KPA22CA - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
  • 15KPA200A - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
  • 15KPA200CA - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
  • 15KPA20A - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
  • 15KPA20CA - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
  • 15KPA240A - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

Full PDF Text Transcription

Click to expand full text

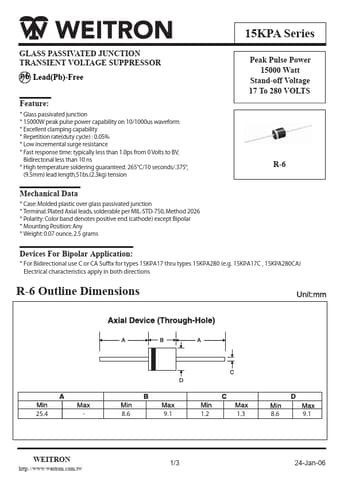

15KPA Series GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR P b Lead(Pb)-Free Feature: * Glass passivated junction * 15000W peak pulse power capability on 10/1000us waveform * Excellent clamping capability * Repetition rate(duty cycle) : 0.05% * Low incremental surge resistance * Fast response time: typically less than 1.0ps from 0 Volts to BV, Bidirectonal less than 10 ns * High temperature soldering guaranteed: 265°C/10 seconds/.375", (9.5mm) lead length,51bs.(2.
