1N5821 Datasheet | Won-Top Electronics

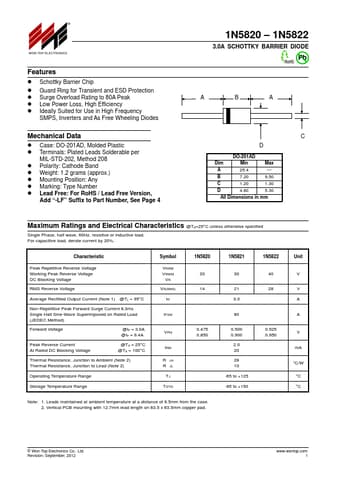

Features - Schottky Barrier Chip - Guard Ring for Transient and ESD Protection - Surge Overload Rating to 80A Peak - Low Power Loss, High Efficiency - Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes Mechanical Data - Case: DO-201AD, Molded Plastic - Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 - Polarity: Cathode Band - Weight: 1.2 grams (approx.) - Mounting Position: Any - Marking: Type Number - Lead Free: For Ro HS / Lead Free Version, Add “-LF” Suffix to Part Number, See Page 4 1N5820 - 1N5822 3.0A SCHOTTKY BARRIER DIODE Pb DO-201AD Dim Min Max A 25.4 - B 7.20 9.50 C 1.20 1.30 D 4.80 5.30 All Dimensions in mm Maximum Ratings and Electrical Characteristics @TA=25°C unless otherwise specified Single Phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak...
