30KP71CA, 30KP28A-WON - 30000W TRANSIENT VOLTAGE SUPPRESSOR

WON-TOP

📥 Download Datasheet

30KP71CA Datasheet Preview — This datasheet PDF includes multiple part numbers: 30KP71CA, 30KP28A-WON. Please refer to the document for exact specifications by model.

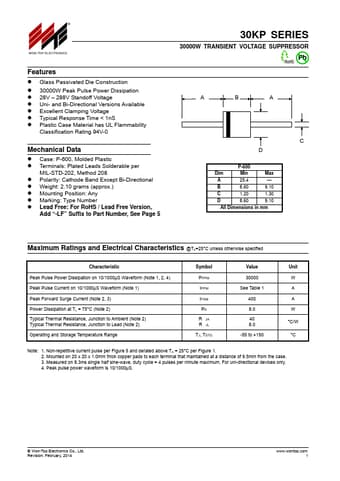

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	30KP71CA, 30KP28A-WON
Manufacturer	WON-TOP
File Size	90.32 KB
Description	30000W TRANSIENT VOLTAGE SUPPRESSOR
Datasheet	30KP28A-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: 30KP71CA, 30KP28A-WON. Please refer to the document for exact specifications by model.

30KP71CA Product details

Features

Glass Passivated Die Construction.
30000W Peak Pulse Power Dissipation.
28V.
288V Standoff Voltage.
Uni- and Bi-Directional Versions Available.
Excellent Clamping Voltage.
Typical Response Time < 1nS.
Plastic Case Material has UL Flammability Classification Rating 94V-0 Mechanical Data.
Case: P-600, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band Except Bi-Directional.
Weight:.
