GBJ6A - 6.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER

Download the GBJ6A datasheet PDF (GBJ6A-WON included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 6.0a glass passivated single phase bridge rectifier.

Features

  • Glass Passivated Die Construction.
  • Low Forward Voltage Drop.
  • High Current Capability.
  • High Reliability.
  • High Surge Current Capability.
  • Ideal for Printed Circuit Boards.
  • Recognized File # E157705 G C H J Mechanical Data.
  • Case: GBJ-6, Molded Plastic.
  • Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
  • Polarity: As Marked on Body.
  • Weight: 7.0 grams (approx. ).
  • Mounting Position: Any.
  • Mounting Torque: 0.8 N. m Max.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GBJ6A-WON-TOP.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number GBJ6A
Manufacturer WON-TOP
File Size 41.40 KB
Description 6.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER
Datasheet download datasheet GBJ6A Datasheet

📁 Similar Datasheet

  • GBJ6A - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER (Pan Jit International Inc.)
  • GBJ6A - Bridge Rectifier (Formosa MS)
  • GBJ6A - Glass Passivated Single-Phase Bridge Rectifiers (GOOD-ARK)
  • GBJ6A - SILICON BRIDGE RECTIFIERS (CHENG-YI)
  • GBJ6AU - Glass Passivated Single-Phase Bridge Rectifiers (GOOD-ARK)
  • GBJ6 - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER (Pan Jit International Inc.)
  • GBJ6005 - 6.0A GLASS PASSIVATED BRIDGE RECTIFIER (Diodes Incorporated)
  • GBJ6005 - 6 Amp Glass Passivated Bridge Rectifier (Micro Commercial Components)
  • GBJ6005 - Glass Passivated Bridge Rectifiers (HY ELECTRONIC)
  • GBJ6005 - GLASS PASSIVATED CHIP SINGLE-PHASE BRIDGE RECTIFIER (First Silicon)
Other Datasheets by WON-TOP
  • GBJ6B - 6.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER
  • GBJ6D - 6.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER
  • GBJ6G - 6.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER
  • GBJ6J - 6.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER
  • GBJ6K - 6.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER
  • GBJ6M - 6.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER
  • GBJ10A - 10A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER
  • GBJ10B - 10A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER

Full PDF Text Transcription

Click to expand full text

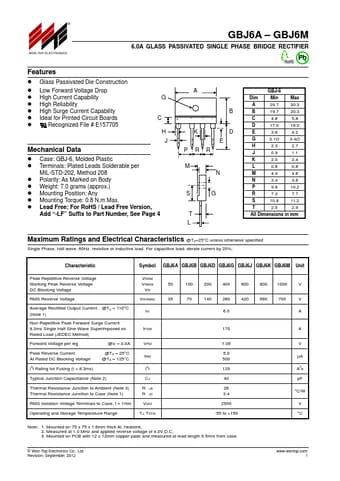

® WON-TOP ELECTRONICS GBJ6A – GBJ6M 6.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER Pb Features  Glass Passivated Die Construction  Low Forward Voltage Drop  High Current Capability  High Reliability  High Surge Current Capability  Ideal for Printed Circuit Boards  Recognized File # E157705 G C H J Mechanical Data  Case: GBJ-6, Molded Plastic  Terminals: Plated Leads Solderable per MIL-STD-202, Method 208  Polarity: As Marked on Body  Weight: 7.0 grams (approx.)  Mounting Position: Any  Mounting Torque: 0.8 N.m Max.  Lead Free: For RoHS / Lead Free Version, Add “-LF” Suffix to Part Number, See Page 4 A + ~ ~- B K P RR D E M N SG T L GBJ-6 Dim Min Max A 29.7 30.3 B 19.7 20.3 C 4.8 5.8 D 17.0 18.0 E 3.6 4.2 G 3.1Ø 3.4Ø H 2.3 2.7 J 0.9 1.1 K 2.0 2.4 L 0.6 0.
