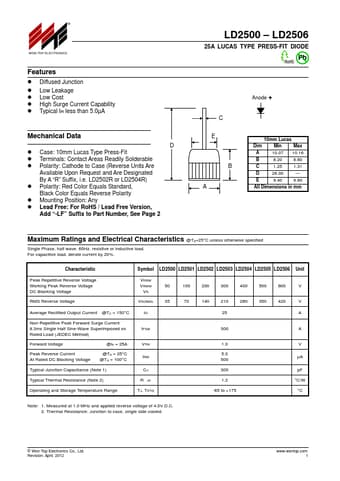

Datasheet Details
Part number:
LD2501, LD2500-WON
Manufacturer:
WON-TOP
File Size:
27.47 KB
Description:
25A LUCAS TYPE PRESS-FIT DIODE
Note:
This datasheet PDF includes multiple part numbers: LD2501, LD2500-WON.
Please refer to the document for exact specifications by model.
LD2501 Features
* Diffused Junction
* Low Leakage
* Low Cost
* High Surge Current Capability
* Typical IR less than 5.0µA Mechanical Data
* Case: 10mm Lucas Type Press-Fit
* Terminals: Contact Areas Readily Solderable
* Polarity: Cathode to Case (Reverse Units Are Available Upon Req
