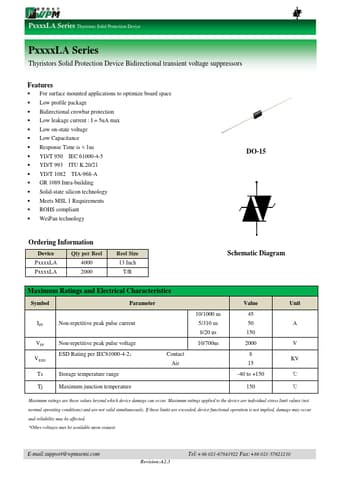

P1500LA
P1500LA is Thyristors Solid Protection Device Bidirectional transient voltage suppressors manufactured by WPM.
Features
- For surface mounted applications to optimize board space
- Low profile package
- Bidirectional crowbar protection
- Low leakage current : I = 5u A max
- Low on-state voltage
- Low Capacitance
- Response Time is < 1us
- YD/T 950 IEC 61000-4-5
- YD/T 993 ITU K.20/21
- YD/T 1082 TIA-968-A
- GR 1089 Intra-building
- Solid-state silicon technology
- Meets MSL 1 Requirements
- ROHS pliant
- Wei Pan technology
DO-15
Ordering Information
Device Pxxxx LA Pxxxx LA
Qty per Reel 4000 2000
Reel Size 13 Inch
T/R
Schematic Diagram
Maximum Ratings and Electrical Characteristics
Symbol
Parameter
IPP Non-repetitive peak pulse current
VPP VESD Ts
Tj
Non-repetitive peak pulse voltage ESD Rating per IEC61000-4-2：
Storage temperature range Maximum junction temperature
Contact Air
10/1000 us 5/310 us 8/20...
